Shrouded housing and detent lock
The 0022057115: The four-wall shrouded housing with detent lock resists accidental unmating in vibration environments — the shroud also protects the pins during handling.

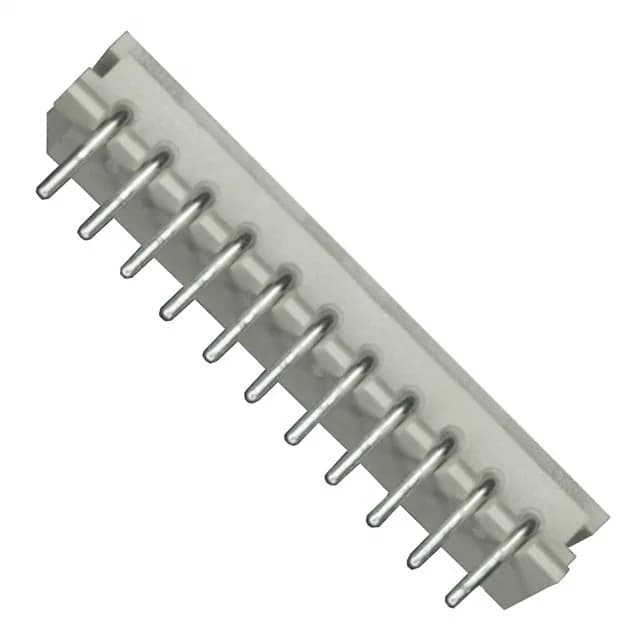

Molex 0022057115 Header, 11-Pos 2.50mm, Mini-SPOX 5268
MPN0022057115
Active
Molex Mini-SPOX 5268 header, order code 0022057115, 11 positions, single row, 2.50 mm pitch, tin-plated mating contacts, through-hole right-angle, solder termination.
$0.5800Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Mini-SPOX 5268 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Contact material | Brass |
| Insulation color | Natural |
| Insulation height | 0.193\" (4.90mm) |
| Insulation material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
All specifications
| Parameter | Value |
|---|---|
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Medical, Telecommunications |
| Contact shape | Circular |
| Rows | 1 |
| Pitch | 0.098\" (2.50mm) |
| Positions | 11 |
| Contact finish - post | Tin |
| Contact length - post | 0.138\" (3.50mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.138\" (3.50mm) |
| Contact finish thickness - post | 160.0µin (4.06µm) |
| Contact finish thickness - mating | 160.0µin (4.06µm) |
Product details
Frequently asked questions
How can I get pricing and availability for 0022057115?
The part is Active and available to order. Submit an RFQ for current pricing and lead time against the BOM quantity.
