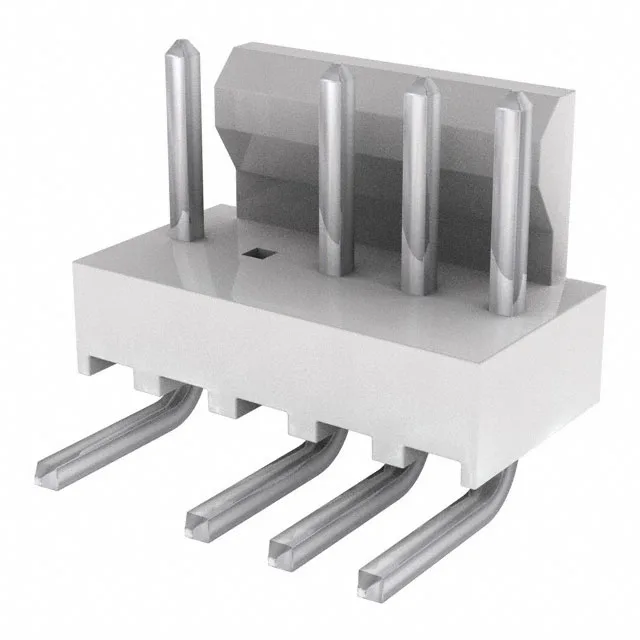

Molex KK254, 7832 series header, order code 0022058059, 5 positions (4 loaded), single row, 0.100" (2.54 mm) pitch, tin-plated brass contacts (mating 60.0µin / post 60.0µin), through-hole right-angle, solder termination, shrouded 1-wall, friction lock, white UL94 V-0 polyamide housing, bulk.
| Parameter | Value |
|---|---|
| Series | KK254, 7832 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Friction Lock |
| Contact material | Brass |
| Insulation color | White |
| Insulation height | 0.250\" (6.35mm) |
| Insulation material | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 5 |
| Contact finish - post | Tin |
| Contact length - post | 0.141\" (3.58mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.264\" (6.70mm) |
| Contact finish thickness - post | 60.0µin (1.52µm) |
| Contact finish thickness - mating | 60.0µin (1.52µm) |
The 0022058059 is a 5-position (4 loaded) single-row member of the Molex KK254 series, a shrouded 1-wall header with friction lock for board-to-board or cable applications.
The header body carries 5 positions but only 4 are loaded with contacts — the unloaded position can serve as a keying or polarization feature in the mating interface.
RoHS and REACH compliance documentation is available from Molex for the series.
