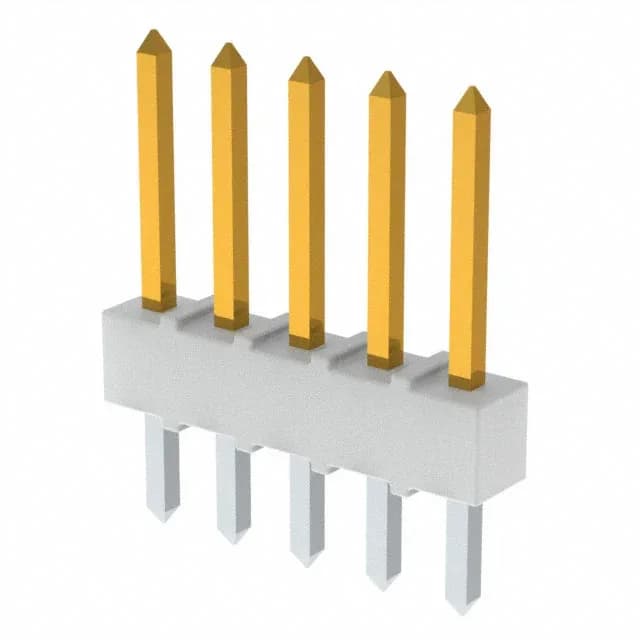

Molex KK254, 4030 series header, order code 0022102051, 5 positions, single row, 0.100" (2.54 mm) pitch, unshrouded, through-hole solder termination, gold mating contact finish, white nylon housing, UL94 V-0.
Molex KK254 0022102051 Header, 5-Pos 2.54mm
MPN0022102051
Active
Molex KK254, 4030 series header, order code 0022102051, 5 positions, single row, 0.100" (2.54 mm) pitch, unshrouded, through-hole solder termination, gold mating contact finish, white nylon housing, UL94 V-0.
$1.3200Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesKK254, 4030
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | KK254, 4030 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Insulation color | White |
| Insulation height | 0.130\" (3.30mm) |
| Insulation material | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Unshrouded |
All specifications
| Parameter | Value |
|---|---|
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 5 |
| Contact finish - post | Tin |
| Contact length - post | 0.135\" (3.43mm) |
| Overall contact length | 0.560\" (14.22mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.295\" (7.49mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 20.0µin (0.51µm) |
Product details
Frequently asked questions
Is 0022102051 RoHS compliant?
The 0022102051 is ROHS3 compliant per the manufacturer's listing.
What is the pinout of 0022102051?
The 0022102051 is a 5-position, single-row unshrouded header. All positions are loaded.
