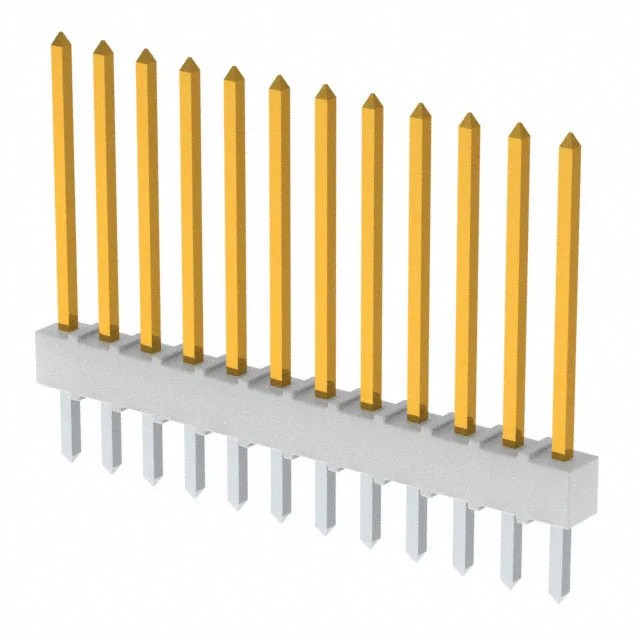

Molex KK254 4030 header, order code 0022102124, 12 positions, single row, 0.100" (2.54 mm) pitch, gold-plated mating contacts, through-hole, solder termination.
Molex 0022102124 KK254 Header, 12 Pos 2.54mm
MPN0022102124
Active
Molex KK254 4030 header, order code 0022102124, 12 positions, single row, 0.100" (2.54 mm) pitch, gold-plated mating contacts, through-hole, solder termination.
$1.5486Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | KK254, 4030 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Insulation color | White |
| Insulation height | 0.130\" (3.30mm) |
| Insulation material | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Unshrouded |
All specifications
| Parameter | Value |
|---|---|
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 12 |
| Contact finish - post | Tin |
| Contact length - post | 0.150\" (3.81mm) |
| Overall contact length | 0.840\" (21.34mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.560\" (14.22mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 20.0µin (0.51µm) |
