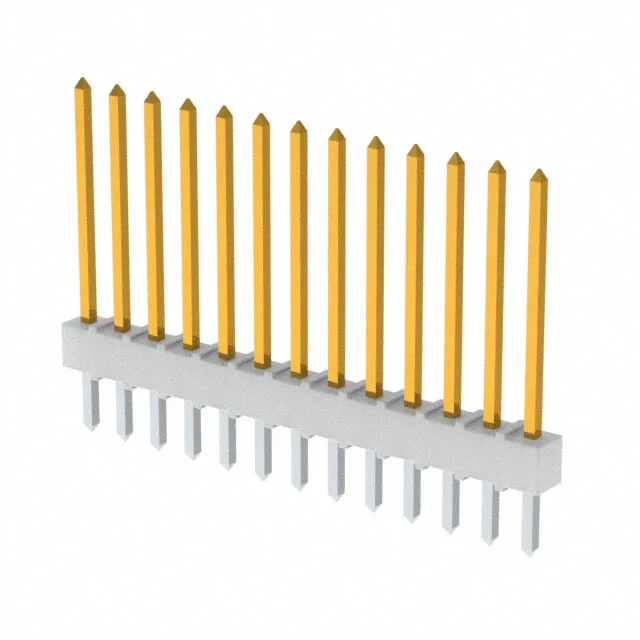

Molex KK254 (4030 series) unshrouded square-pin male header, 13 positions, single row, 0.100" (2.54mm) pitch, gold-plated mating face, tin-plated solder post, through-hole solder termination, PA Nylon UL94 V-0 housing, bulk pack.
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | KK254, 4030 |
| Gender | Male Pin |
| Mounting type | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Insulation color | White |
| Insulation height | 0.130\" (3.30mm) |
| Insulation material | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 13 |
| Contact finish - post | Tin |
| Contact length - post | 0.150\" (3.81mm) |
| Overall contact length | 0.840\" (21.34mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.560\" (14.22mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 20.0µin (0.51µm) |
Sourcing this connector
Molex 0022102134 is available through IC Source Direct’s Shenzhen interconnect channel. Submit an RFQ with your required quantity and timeline; we return a firm quote covering MOQ, lead time, condition, and unit price — typically within one business day.
Need a match by specification instead of MPN? Provide pitch, pin count, current rating, mounting style, and operating temperature. We cross-reference against Molex and other authorised lines, returning datasheet-verified alternatives. Attach a full BOM for multi-brand consolidation into one shipment.
Frequently asked questions
How do I get current pricing and availability for 0022102134?
Pricing and availability for the 0022102134 are confirmed at quote time through an RFQ — the part is sourced to order against the BOM quantity with no stock-holding commitment.
What is 0022102134's listed style?
The 0022102134 is listed with a Style of Board to Board or Cable.
What series does 0022102134 belong to?
The 0022102134 is listed in the KK254 series (series 4030).
