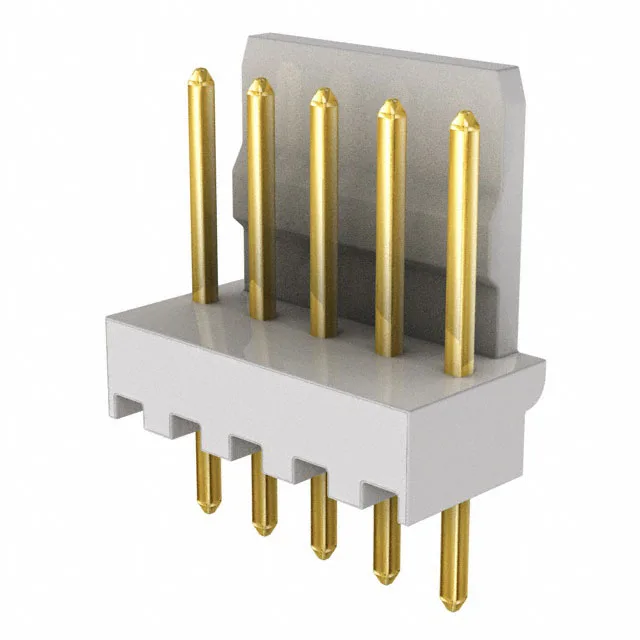

Molex 0022111051

Molex 0022111051

MPN 0022111051
Active
$0.5549 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

0022111051 key specifications
ParameterValue
SeriesKK250, 5045
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeFriction Lock
Contact materialBrass
Insulation colorNatural
Insulation height0.461\" (11.70mm)
Insulation materialPolyamide (PA), Nylon
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBulk

All specifications

0022111051 additional specifications
ParameterValue
ShroudingShrouded - 1 Wall
TerminationSolder
Contact shapeSquare
Rows1
Pitch0.098\" (2.50mm)
Positions5
Contact length - post0.134\" (3.40mm)
Overall contact length0.559\" (14.20mm)
Contact finish - matingGold
Contact length - mating0.295\" (7.49mm)
Contact finish thickness - mating13.8µin (0.35µm)
MPN
0022111051
