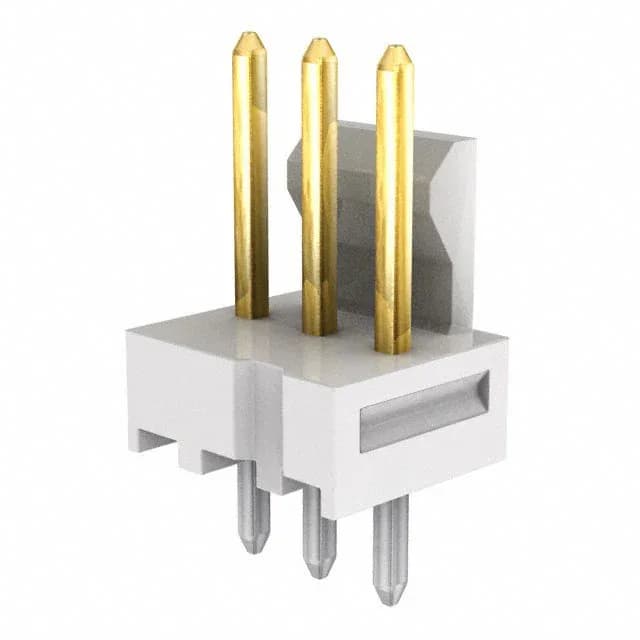

Molex KK254 6373 series header, 0022112036, 3 positions, 0.100" (2.54mm) pitch, shrouded 1 wall, through-hole, friction lock, gold-plated mating contacts, UL94 V-0 nylon housing.
| Parameter | Value |
|---|---|
| Series | KK254, 6373 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Friction Lock |
| Contact material | Brass |
| Insulation color | White |
| Insulation height | 0.322\" (8.18mm) |
| Insulation material | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 3 |
| Contact finish - post | Tin |
| Contact length - post | 0.187\" (4.75mm) |
| Overall contact length | 0.630\" (16.00mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.318\" (8.08mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 20.0µin (0.51µm) |
The 0022112036: The 0.322" (8.18mm) insulation height provides clearance for the receptacle body and keeps the mated stack within a reasonable z-height budget for enclosed assemblies. Through-hole solder termination with 0.187" (4.75mm) post length gives a solid mechanical anchor on the PCB — the 0.630" (16.00mm) overall contact length ensures the pin reaches through the board for wave or hand soldering.
Yes, it is a shrouded header with one wall.
Yes, the fastening type is friction lock. It holds the mated pair together without a separate latch, suitable for moderate-vibration environments.
The pitch is 0.100" (2.54mm), the standard spacing for KK254 series headers.
