Molex 0022112048

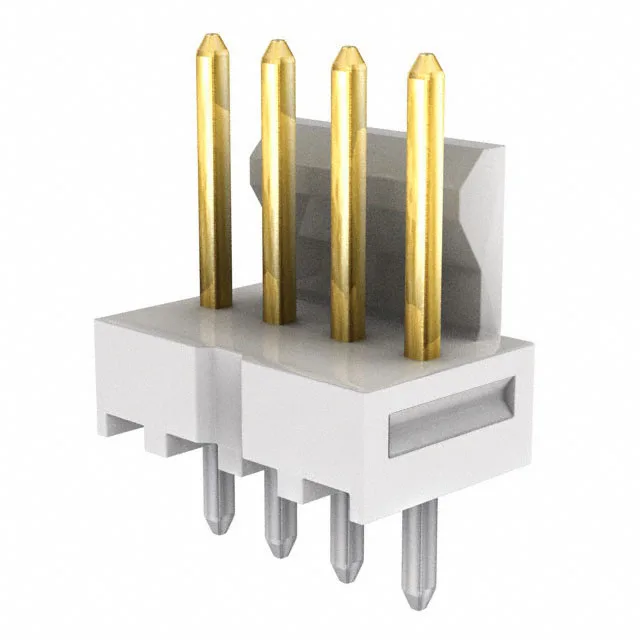

Molex KK254 0022112048 Header, 4-Pos 2.54mm

MPN 0022112048
Active

Molex KK254 6373 header, order code 0022112048, 4 positions, single row, 0.100" (2.54mm) pitch, gold-plated mating contacts, through-hole, shrouded 1-wall, friction lock, solder termination.

$0.4213 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

0022112048 key specifications
ParameterValue
SeriesKK254, 6373
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeFriction Lock
Contact materialBrass
Insulation colorWhite
Insulation height0.322\" (8.18mm)
Insulation materialPolyamide (PA), Nylon
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable
PackageBulk

All specifications

0022112048 additional specifications
ParameterValue
ShroudingShrouded - 1 Wall
TerminationSolder
ApplicationsAutomotive, General Purpose, Medical, Telecommunications
Contact shapeSquare
Rows1
Pitch0.100\" (2.54mm)
Positions4
Contact finish - postTin
Contact length - post0.140\" (3.56mm)
Overall contact length0.560\" (14.22mm)
Contact finish - matingGold
Contact length - mating0.295\" (7.49mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

Through-hole header with friction lock

The 0022112048 is the 4-circuit member of Molex's KK254 6373 header line, a single-row shrouded header with a 1-wall shroud and friction lock for positive retention. It mates board-to-board or cable applications at a 0.100" (2.54mm) pitch, carries gold-plated mating contacts rated 30.0µin (0.76µm), and mounts through-hole with solder termination.
