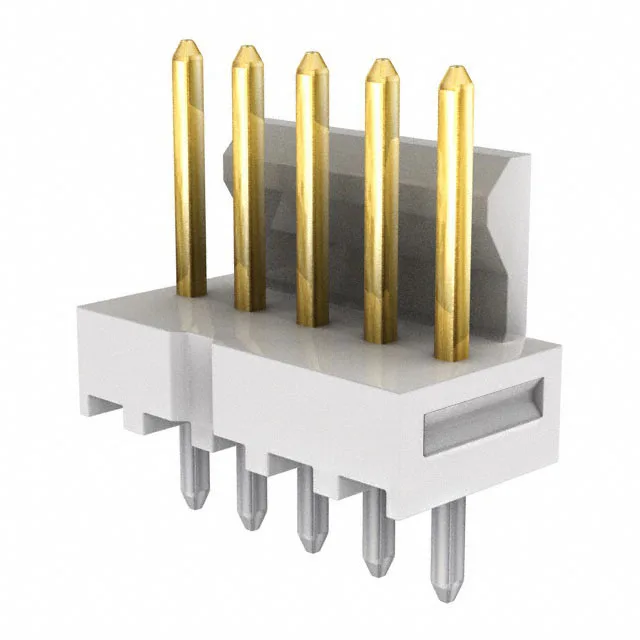

Molex KK254, 6373 header, order code 0022112058, 5 positions, single row, 0.100" (2.54mm) pitch, gold-plated mating contacts, through-hole, solder termination.
| Parameter | Value |
|---|---|
| Series | KK254, 6373 |
| Gender | Male Pin |
| Mounting type | Through Hole |
| Connector type | Header |
| Fastening type | Friction Lock |
| Contact material | Brass |
| Insulation color | White |
| Insulation height | 0.322\" (8.18mm) |
| Insulation material | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 5 |
| Contact finish - post | Tin |
| Contact length - post | 0.140\" (3.56mm) |
| Overall contact length | 0.560\" (14.22mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.295\" (7.49mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 0022112058 is the 5-circuit single-row member of the Molex KK254 / 6373 header family, terminated through-hole with solder. Gold mating contacts at 2.54 mm pitch, a shrouded 1-wall housing with friction lock, and UL94 V-0 nylon insulation suit it for automotive, medical, and telecom applications.
