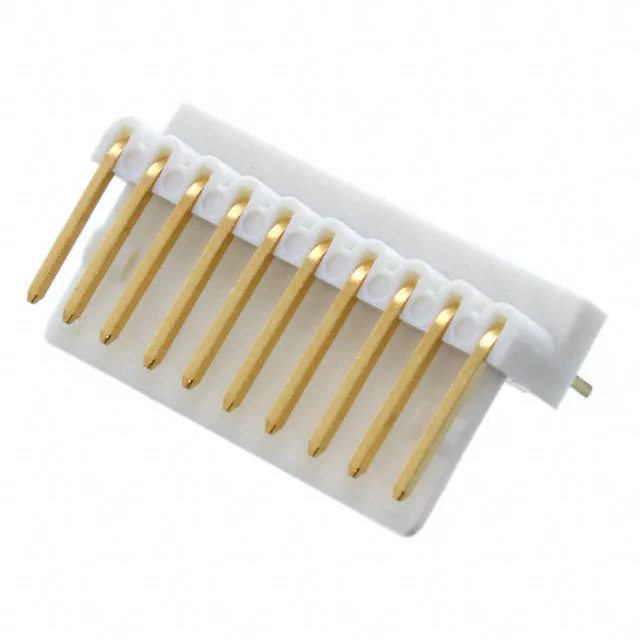

Molex 0022121102
MPN0022121102
Active
$2.8798Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | KK250, 5046 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Friction Lock |
| Insulation color | Natural |
| Insulation height | 0.248\" (6.30mm) |
| Insulation material | Polyamide (PA66), Nylon 6/6 |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 1 Wall |
All specifications
| Parameter | Value |
|---|---|
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.098\" (2.50mm) |
| Positions | 10 |
| Contact length - post | 0.134\" (3.40mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.295\" (7.49mm) |
| Contact finish thickness - mating | 13.8µin (0.35µm) |
