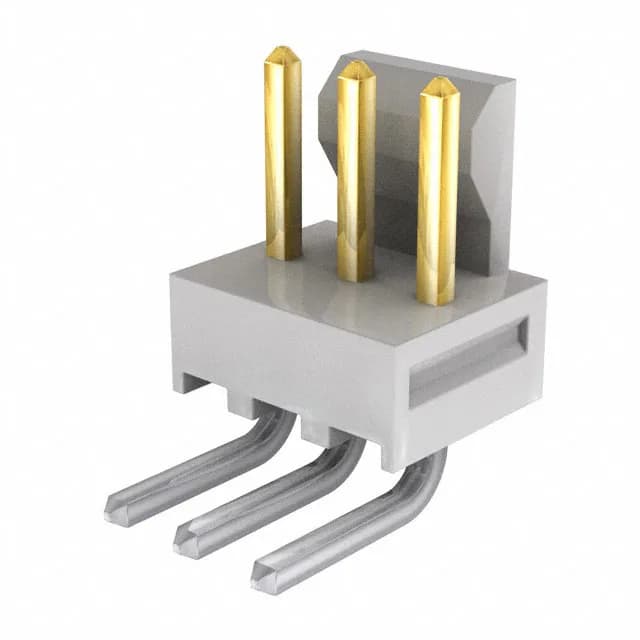

Molex KK254, 7478 header, order code 0022122036, 3 positions, single row, 0.100" (2.54mm) pitch, gold-plated mating contacts, through-hole right-angle, solder termination, friction lock.
| Parameter | Value |
|---|---|
| Series | KK254, 7478 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Friction Lock |
| Contact material | Brass |
| Insulation color | White |
| Insulation height | 0.250\" (6.35mm) |
| Insulation material | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 3 |
| Contact finish - post | Tin |
| Contact length - post | 0.141\" (3.58mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.264\" (6.70mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 0022122036 is the 3-circuit member of Molex's KK254 header line, a single-row shrouded header with one wall of shroud and a friction-lock fastening for positive retention.
The 0.141" (3.58mm) post length supports standard 1.6 mm PCB thickness.
The 0022122036 is a Board to Board or Cable style header from the KK254, 7478 series.
RoHS and REACH compliance documentation is available from Molex.
