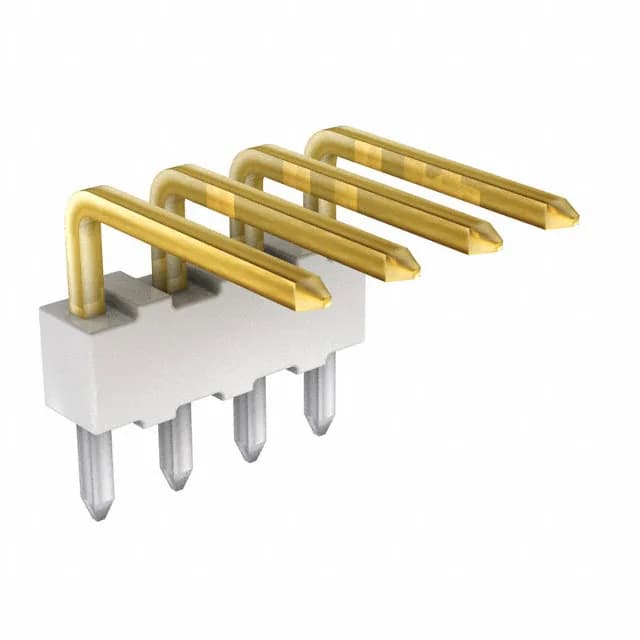

Molex KK254 series, 0022122041, unshrouded header, 4 circuits, 0.100" (2.54mm) pitch, right-angle through-hole, gold-plated mating pins, tin-plated solder tails, UL94 V-0 nylon housing.
| Parameter | Value |
|---|---|
| Series | KK254, 4094 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Insulation color | White |
| Insulation height | 0.130\" (3.30mm) |
| Insulation material | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Unshrouded |
| Parameter | Value |
|---|---|
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 4 |
| Contact finish - post | Tin |
| Contact length - post | 0.124\" (3.15mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.369\" (9.37mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 20.0µin (0.51µm) |
The 0022122041: The solder tails receive a 100 µinch tin finish for reliable wave-solder wetting.
The post length below the insulator is 0.124" (3.15mm), which determines the through-hole depth on the PCB.
ROHS3 compliant per the current directive.
The pitch is 0.100" (2.54mm), which is the centre-to-centre spacing between adjacent pins. This is the standard KK254 pitch and determines the PCB footprint and mating receptacle compatibility.
The 0.100" pitch and single-row layout are the key compatibility parameters.
