Molex 0022231045

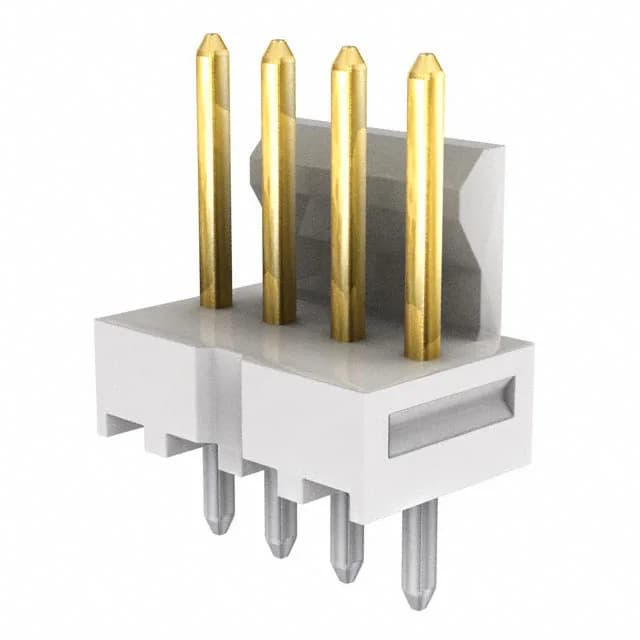

Molex KK254 0022231045 Header, 4-Pos, 2.54mm

MPN 0022231045
Active

Molex KK254, 6373 header, order code 0022231045, 4 positions, single row, 0.100" (2.54mm) pitch, gold-plated mating contacts, through-hole, solder termination.

$0.7930 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

0022231045 key specifications
ParameterValue
SeriesKK254, 6373
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeFriction Lock
Contact materialBrass
Insulation colorWhite
Insulation height0.322\" (8.18mm)
Insulation materialPolyamide (PA), Nylon
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable
PackageTube

All specifications

0022231045 additional specifications
ParameterValue
ShroudingShrouded - 1 Wall
TerminationSolder
ApplicationsAutomotive, General Purpose, Medical, Telecommunications
Contact shapeSquare
Rows1
Pitch0.100\" (2.54mm)
Positions4
Contact finish - postTin
Contact length - post0.140\" (3.56mm)
Overall contact length0.560\" (14.22mm)
Contact finish - matingGold
Contact length - mating0.295\" (7.49mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating20.0µin (0.51µm)

Product details

Board-to-board or cable header, 4 circuits

The 0022231045 is the 4-circuit member of the Molex KK254, 6373 header line, a single-row shrouded header with friction lock for board-to-board or cable connections. Gold-plated mating contacts (20.0µin) on a 0.100" (2.54mm) pitch, through-hole mounting, and a UL94 V-0 nylon housing.

Contact and housing materials

Brass contacts with 20.0µin gold on the mating surface and 100.0µin tin on the post. The polyamide housing carries a UL94 V-0 flammability rating.
