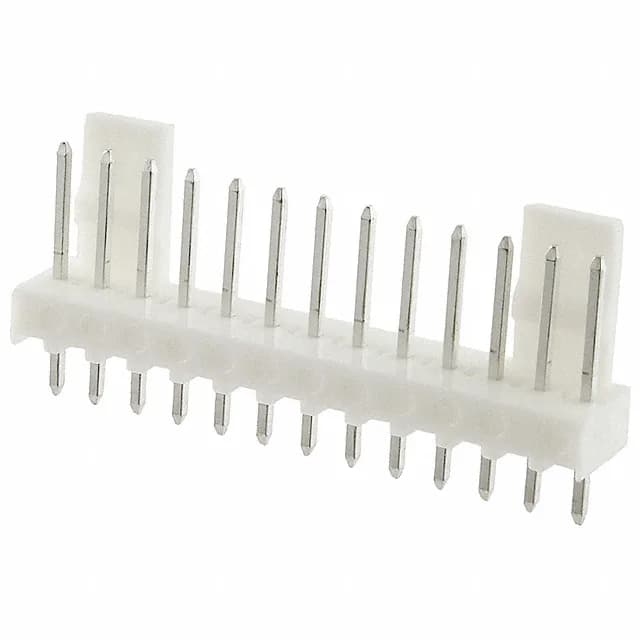

Molex KK254, 6410 header, order code 0022272131, 13 positions, single row, 0.100" (2.54 mm) pitch, tin-plated mating contacts, through-hole, solder termination, shrouded - 1 wall, friction lock.
| Parameter | Value |
|---|---|
| Series | KK254, 6410 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Friction Lock |
| Contact material | Brass |
| Insulation color | Natural |
| Insulation height | 0.461\" (11.70mm) |
| Insulation material | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 13 |
| Contact finish - post | Tin |
| Contact length - post | 0.140\" (3.56mm) |
| Overall contact length | 0.560\" (14.22mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.295\" (7.49mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
The 0022272131 is the 13-position member of Molex's KK254 6410 series board-to-wire header line, a single-row shrouded header with friction lock retention.
The 13 circuits of the 0022272131 match the count for a 13-way harness.
The style is Board to Cable/Wire from the KK254, 6410 series.
The housing material is rated UL94 V-0. RoHS and REACH compliance documentation is available from Molex upon request through the distributor.
