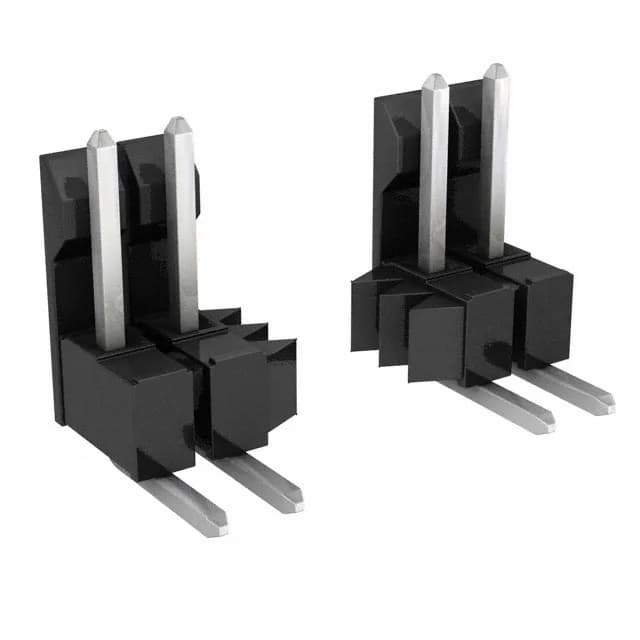

Molex KK254, 42228 series header, breakaway, order code 0022281100, 10 positions, single row, 0.100" (2.54mm) pitch, tin-plated male pin contacts, through-hole right-angle, solder termination, shrouded with friction lock.
| Parameter | Value |
|---|---|
| Series | KK254, 42228 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header, Breakaway |
| Fastening type | Friction Lock |
| Insulation color | Black |
| Insulation height | 0.284\" (7.21mm) |
| Insulation material | Polyamide (PA), Nylon, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Shrouded - 1 Wall |
| Parameter | Value |
|---|---|
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 10 |
| Contact finish - post | Tin |
| Contact length - post | 0.120\" (3.05mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.295\" (7.49mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
The 0022281100 is the 10-position member of the Molex KK254, 42228 series header line. It is a single-row through-hole right-angle header with a 0.100" (2.54mm) mating pitch, tin-plated contacts, a 1-wall shroud, and a friction lock for retention. The black glass-filled nylon housing carries a UL94 V-0 flammability rating.
The mating pitch is 0.100" (2.54mm) and the contact finish is tin on both the mating and post sides.
The housing material is rated UL94 V-0. RoHS and REACH compliance documentation is provided by the manufacturer.
