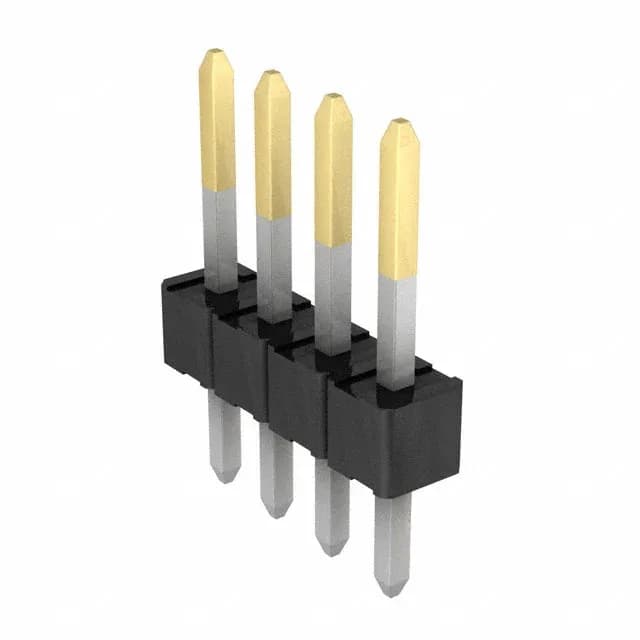

Molex KK254 42375 series, unshrouded breakaway header, 4 circuits, 0.100" (2.54mm) pitch, through-hole solder termination, gold-plated mating contacts, black nylon housing, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | KK254, 42375 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Insulation color | Black |
| Insulation height | 0.090\" (2.29mm) |
| Insulation material | Polyamide (PA), Nylon, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Unshrouded |
| Parameter | Value |
|---|---|
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 4 |
| Contact finish - post | Tin |
| Contact length - post | 0.120\" (3.05mm) |
| Overall contact length | 0.530\" (13.46mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.320\" (8.13mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 0022284044: On the board, the 0.320" (8.13mm) mating pin length gives good wipe before the contact bottoms out.
Rated for board-to-board or cable-to-board duty, this header mates with KK254 crimp socket housings (series 6471, 2695) carrying 22–30 AWG wire. Applications span automotive, general-purpose, medical, and telecommunications — the gold plating and V-0 nylon suit environments where repeated mating and flame rating are both specified.
Within the Molex KK254 series, the closest alternative is the 0022284045 (5-position) or 0022284043 (3-position) — same pitch, plating, and unshrouded form factor, differing only in circuit count. No direct 4-position replacement from another manufacturer is listed.
