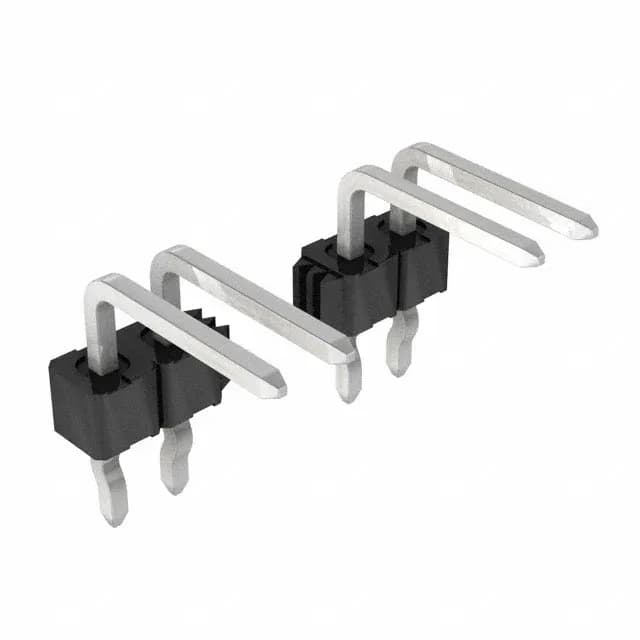

Molex KK254 42376 header, order code 0022287100, 10 positions, single row, 0.100" (2.54 mm) pitch, tin-plated mating contacts, through-hole right-angle, kinked pin solder termination.
Molex 0022287100 KK254 Header, 10-Pos 2.54mm
MPN0022287100
Active
Molex KK254 42376 header, order code 0022287100, 10 positions, single row, 0.100" (2.54 mm) pitch, tin-plated mating contacts, through-hole right-angle, kinked pin solder termination.
$0.4263Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | KK254, 42376 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Insulation color | Black |
| Insulation height | 0.090\" (2.29mm) |
| Insulation material | Polyamide (PA), Nylon, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Unshrouded |
All specifications
| Parameter | Value |
|---|---|
| Termination | Kinked Pin, Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 10 |
| Contact finish - post | Tin |
| Contact length - post | 0.135\" (3.43mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.361\" (9.17mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
Product details
Frequently asked questions
Who supplies the 0022287100 and how is it quoted for volume purchases?
Molex supplies the 0022287100.
What is the listed style and series for the 0022287100?
The style is Board to Board or Cable, and the series is KK254, 42376.
What compliance documentation does Molex provide for the 0022287100?
The housing material is rated UL94 V-0. RoHS and REACH compliance documentation is available from the manufacturer.
