Right-Angle 3-Pin Header on 2.54 mm Pitch

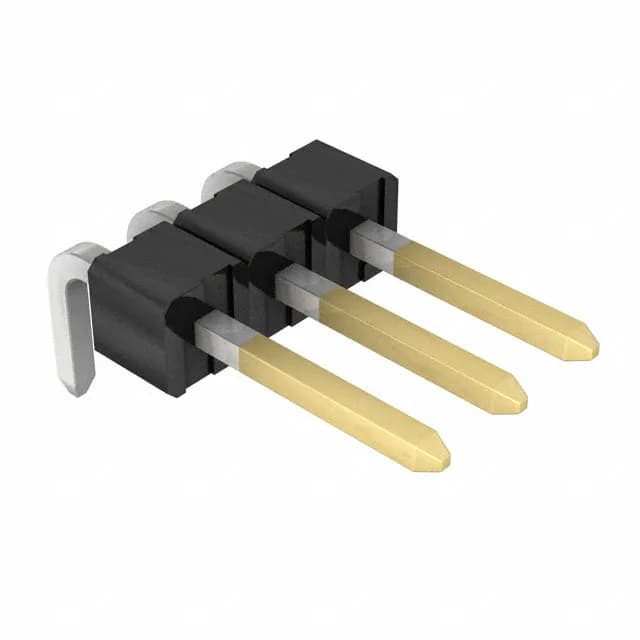

The 0022288032: This is a 3-position, single-row, unshrouded header from the Molex KK254 series (base number 002228).
The unshrouded push-pull fastening means the header accepts any standard 2.54 mm pitch receptacle — KK series crimp housings, IDC sockets, or shrouded headers — as long as the mating half has 3 positions in a single row. The board drill pattern is a single row of 3 holes on 0.100" centers, with the right-angle bend adding about 0.250" standoff from the board surface — confirm keep-out clearance for adjacent components.
