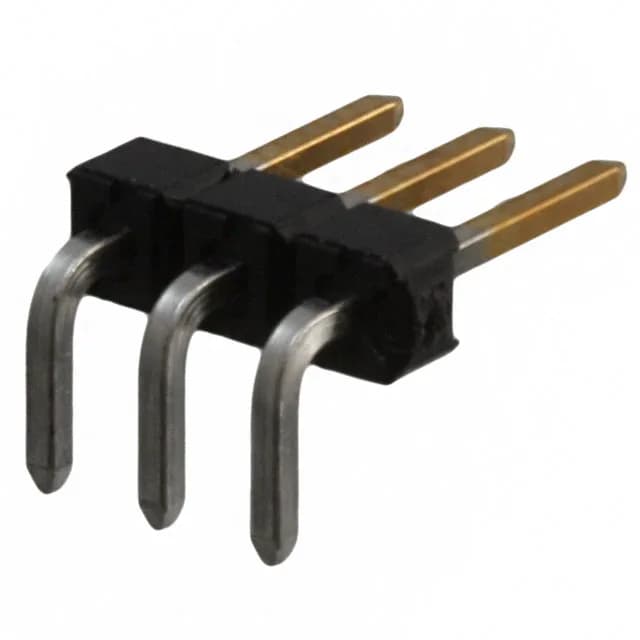

Molex KK254, 42377 header, order code 0022288034, 3 positions, single row, 0.100" (2.54mm) pitch, unshrouded, gold-plated mating contacts, through-hole right-angle, solder termination.
| Parameter | Value |
|---|---|
| Series | KK254, 42377 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Insulation color | Black |
| Insulation height | 0.098\" (2.50mm) |
| Insulation material | Polyamide (PA), Nylon, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Unshrouded |
| Parameter | Value |
|---|---|
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 3 |
| Contact finish - post | Tin |
| Contact length - post | 0.120\" (3.05mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.244\" (6.20mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 0022288034 is the 3-circuit member of Molex's KK254 breakaway header line, a board-to-board or cable interconnect.
The unshrouded header uses a push-pull fastening system and a black glass-filled nylon (PA) housing rated UL94 V-0.
The style is Board to Board or Cable.
RoHS and REACH compliance documentation is available from the manufacturer.
