Molex 0022288041 — Pin Headers

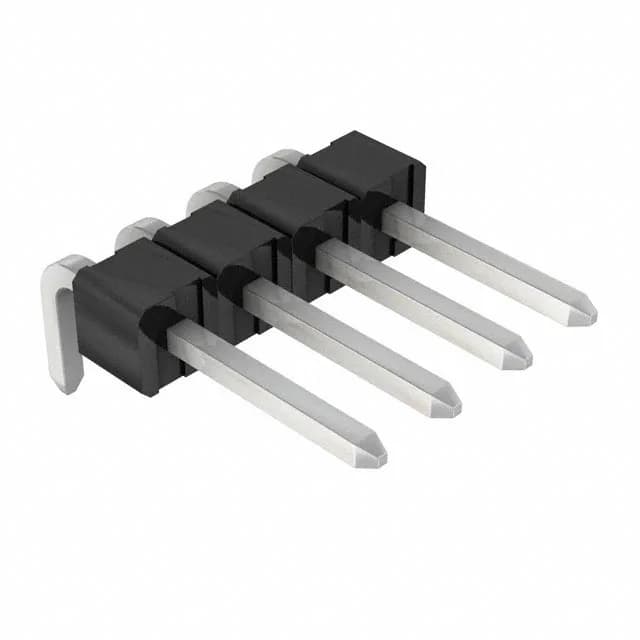

Molex 0022288041 KK254 Header, 4-Pos R/A 2.54mm Pitch

MPN0022288041
Active

Molex KK254, 42377 series, 0022288041 — unshrouded breakaway header, 4 circuits, single row, 0.100" (2.54 mm) pitch, right-angle through-hole, tin-plated male pins, UL94 V-0 black nylon housing, bulk package.

$0.3800Ref. price · indicative, final on quote
Molex 0022288041 datasheet (PDF)
RoHSROHS3 Compliant
SeriesKK254, 42377
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

0022288041 key specifications
ParameterValue
SeriesKK254, 42377
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader, Breakaway
Fastening typePush-Pull
Insulation colorBlack
Insulation height0.098\" (2.50mm)
Insulation materialPolyamide (PA), Nylon, Glass Filled
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable
PackageBulk
ShroudingUnshrouded

All specifications

0022288041 additional specifications
ParameterValue
TerminationSolder
ApplicationsAutomotive, General Purpose, Medical, Telecommunications
Contact shapeSquare
Rows1
Pitch0.100\" (2.54mm)
Positions4
Contact finish - postTin
Contact length - post0.120\" (3.05mm)
Contact finish - matingTin
Contact length - mating0.324\" (8.23mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating100.0µin (2.54µm)

Product details

Board Fit and Routing for a 4-Position Right-Angle Header

The 0022288041: With 4 positions in a single row, the header occupies minimal board edge, leaving room for adjacent connectors or passives. This saves z-height in tight enclosures and simplifies board-edge routing.

Plating and Environmental Rating for the Application

Rated for use in Automotive, General Purpose, Medical, and Telecommunications applications per the series listing — the tin finish and V-0 housing support these environments as long as the connector is not exposed to continuous moisture or corrosive atmospheres.

Frequently asked questions

What is the exact pitch of Molex 0022288041?

0.100" (2.54 mm). This is the centre-to-centre spacing between adjacent pins.

Is 0022288041 RoHS compliant?

Yes, it carries ROHS3 compliance, covering all six original substances plus the four phthalates added in EU 2015/863.

Is there a pin-compatible replacement for 0022288041 in the same series?

The KK254 series includes other 4-position right-angle headers with different plating or contact length — confirm the exact BOM position before substituting.

Where can I buy Molex 0022288041?

Submit an RFQ for current pricing and availability against your target quantity.
