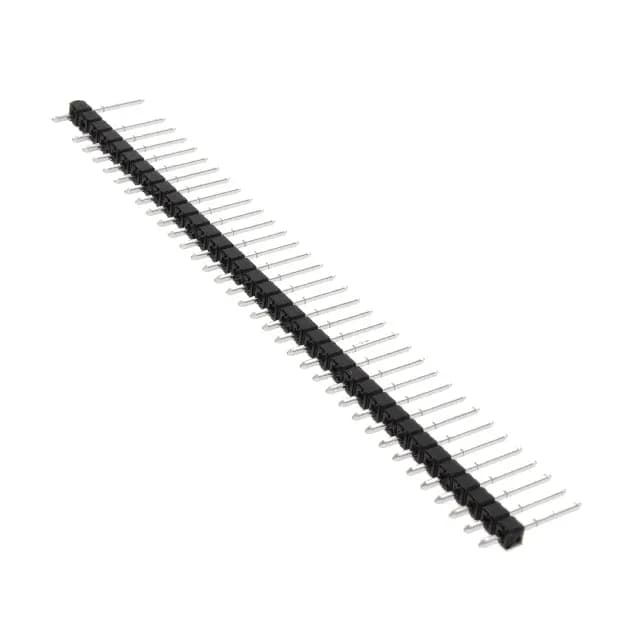

Molex KK254 series unshrouded breakaway header, 36 positions (35 loaded), 0.100" (2.54 mm) pitch, through-hole solder termination, tin-plated square pins, UL94 V-0 black nylon housing.
| Parameter | Value |
|---|---|
| Series | KK254, 42375 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Insulation color | Black |
| Insulation height | 0.090\" (2.29mm) |
| Insulation material | Polyamide (PA), Nylon, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Unshrouded |
| Parameter | Value |
|---|---|
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 36 |
| Contact finish - post | Tin |
| Contact length - post | 0.120\" (3.05mm) |
| Overall contact length | 0.530\" (13.46mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.320\" (8.13mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
The 0022303364: This is a Molex KK254 series unshrouded breakaway header, 36 positions with 35 loaded — one position is left empty, so verify the circuit count against your BOM before committing the line item. Unshrouded means no polarization key on the header — the mating receptacle's housing provides the keying, so the board layout must account for potential mis-mating if the receptacle is not fully seated.
ROHS3 compliant.
The specific receptacle part number depends on circuit count and wire gauge — confirm the housing keying and terminal part number against your harness design.
