Molex 0022566207 — Connector Housings

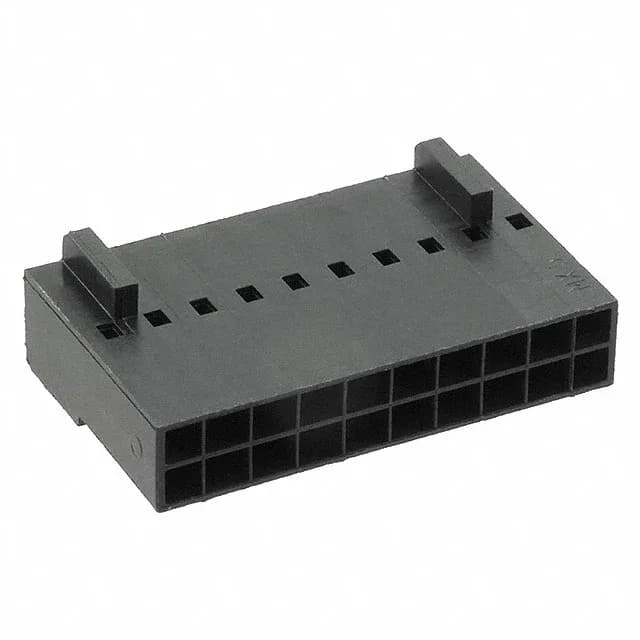

Molex SL 70450 0022566207 Receptacle Housing, 20 Position

MPN0022566207
Active

Molex SL 70450 receptacle housing, 0022566207, 20 positions, 2 rows, 0.100" (2.54mm) pitch, free-hanging crimp termination, black polyester housing, -40°C to 105°C, ROHS3 compliant.

$1.8900Ref. price · indicative, final on quote
Molex 0022566207 datasheet (PDF)
RoHSROHS3 Compliant
SeriesSL 70450
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

0022566207 specifications
ParameterValue
SeriesSL 70450
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Operating temperature-40°C ~ 105°C
ColorBlack
Insulation materialPolyester, Glass Filled
NoteContacts Not Included
Pitch0.100\" (2.54mm)
PackageBulk
Row spacing0.100\" (2.54mm)
Rows2
Contact terminationCrimp
Positions20

Product details

The 0022566207: This is the wire-to-board or wire-to-wire side of an SL-series connection; it mates with the corresponding pin header to complete a signal or low-power circuit path in industrial controls, consumer appliances, and automotive interior harnesses where the 2.54mm pitch balances routing density with reliable hand-assembly.

You must source the matching SL-series female crimp terminals (Molex 70058 series or equivalent) and terminate them to 20-24 AWG wire before insertion. The dual-row layout accepts one terminal per cavity; the secondary retention is built into the housing geometry, so no extra TPA or retainer is needed.

Mating Half and Pitch Check

This receptacle mates with any SL-series 0.100" (2.54mm) pitch pin header of matching 20 positions and dual-row layout — typically a Molex 70553 or 70543 series vertical or right-angle header.

For volume pricing and lead time, submit an RFQ with your target quantity and delivery window.

Frequently asked questions

Where can I buy 0022566207 available via RFQ confirmation?

The 0022566207 is sourced to order through independent distribution — submit an RFQ for current availability and pricing.

What contacts are used with Molex 0022566207?

This housing accepts SL-series female crimp terminals, typically the Molex 70058 series. Contacts are not included with the housing — order the terminals separately, matching the wire gauge (20-24 AWG) and plating (tin or gold) to your application.

What is the pitch of 0022566207?

The pitch is 0.100" (2.54mm), standard for the SL 70450 series. Both the position-to-position pitch and the row spacing are 2.54mm, giving a uniform grid that aligns with any SL-series header.

Is 0022566207 RoHS compliant?

Yes, it is ROHS3 compliant per the manufacturer's listing.
