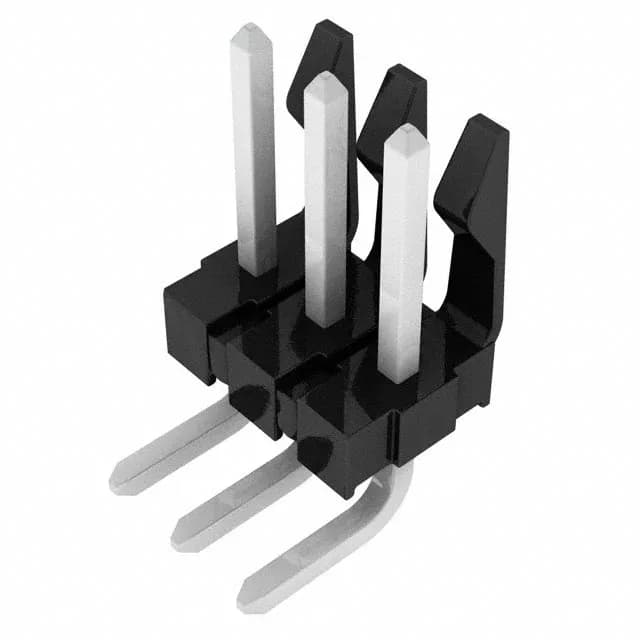

Molex KK396 41672 series, 3-position single-row right-angle breakaway header, 3.96mm pitch, through-hole solder termination, tin-plated square pins, friction lock, UL94 V-0 black polyester housing.
| Parameter | Value |
|---|---|
| Series | KK396, 41672 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header, Breakaway |
| Fastening type | Friction Lock |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.355\" (9.02mm) |
| Insulation material | Polyester |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.156\" (3.96mm) |
| Positions | 3 |
| Contact finish - post | Tin |
| Contact length - post | 0.212\" (5.38mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.450\" (11.43mm) |
| Contact finish thickness - post | 60.0µin (1.52µm) |
| Contact finish thickness - mating | 60.0µin (1.52µm) |
All positions are loaded from the factory.
The single-wall shroud guides the plug but leaves the top of the pins exposed for probing or visual inspection. In a corrosive or high-humidity environment, gold-plated siblings in the KK396 family would be a better fit.
Submit an RFQ for a firm offer.
This header mates with a KK396 crimp receptacle housing (such as Molex 002650 series) that accepts 18-24 AWG terminals.
Yes, it is ROHS3 compliant per the manufacturer's listing.
