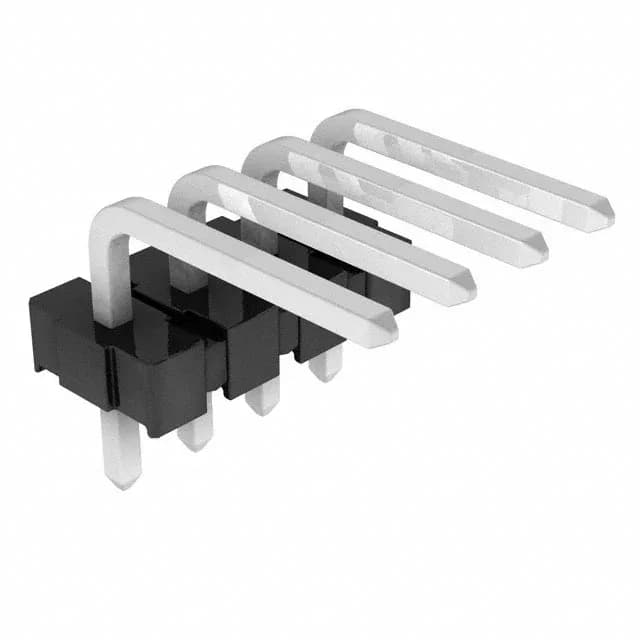

Molex KK396 series, 0026481042, unshrouded breakaway header, 4 positions, 1 row, 3.96mm pitch, right-angle through-hole, tin-plated contacts, UL94 V-0 black housing.
| Parameter | Value |
|---|---|
| Series | KK396, 41662 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.128\" (3.25mm) |
| Insulation material | Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Shrouding | Unshrouded |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.156\" (3.96mm) |
| Positions | 4 |
| Contact finish - post | Tin |
| Contact length - post | 0.184\" (4.67mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.573\" (14.55mm) |
| Contact finish thickness - post | 60.0µin (1.52µm) |
| Contact finish thickness - mating | 60.0µin (1.52µm) |
The KK396 series spans single- and dual-row headers from 2 to 24 circuits at the same 3.96 mm pitch. This 4-position member is one of the lower-count options, often used as a power tap or signal interconnect in automotive, industrial, and telecom gear. Compared to a 10-position sibling, the 4-position version takes less board space and leaves more room for trace routing around the footprint.
Submit an RFQ with your target quantity and we will confirm availability and current pricing — no stock-holding claim, quoted per order.
As an unshrouded header, it mates with any KK396-series receptacle housing that accepts 3.96 mm pitch male pins.
