Molex KK396 41672 series, 4-position single-row male pin header, 3.96mm pitch, right-angle through-hole, shrouded 1-wall, friction lock, tin-plated contacts, UL94 V-0 black polyester housing.
| Parameter | Value |
|---|---|
| Series | KK396, 41672 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header, Breakaway |
| Fastening type | Friction Lock |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.355\" (9.02mm) |
| Insulation material | Polyester |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.156\" (3.96mm) |
| Positions | 4 |
| Contact finish - post | Tin |
| Contact length - post | 0.212\" (5.38mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.450\" (11.43mm) |
| Contact finish thickness - post | 60.0µin (1.52µm) |
| Contact finish thickness - mating | 60.0µin (1.52µm) |
The 0026481046: This Molex KK396 header carries four circuits on a single row at 3.96 mm pitch — the same pitch used across the KK396 receptacle family, so the board footprint and mating half are locked in.

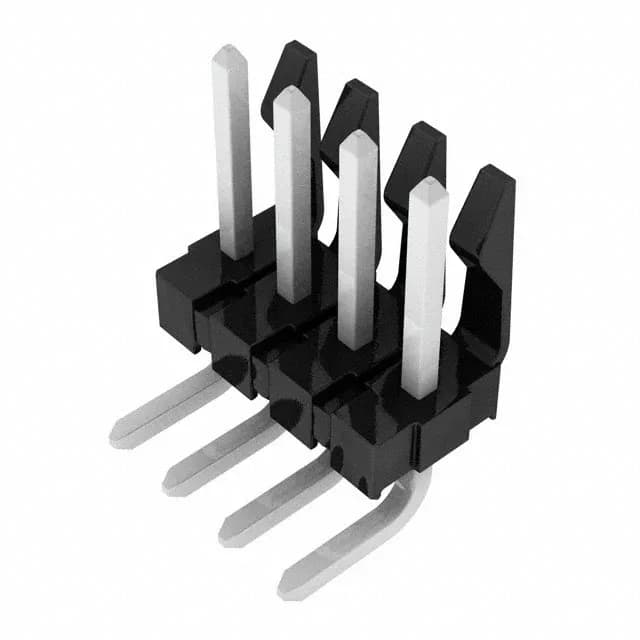

The Molex 0026481046 is a 4-position single-row male pin header from the KK396 series (41672 family), with a 3.96 mm pitch, right-angle through-hole mounting, and a friction lock on the shroud. It mates with KK396 receptacle housings that accept 20-24 AWG crimp terminals.
