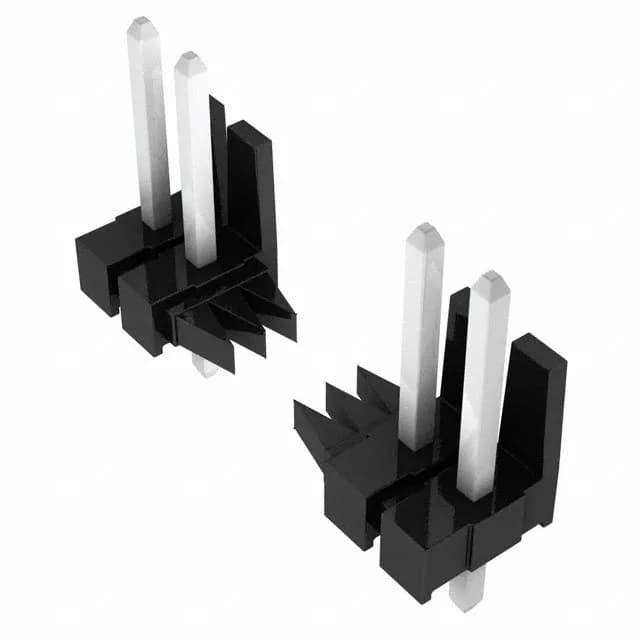

Molex KK396 header, order code 0026481103, 10 positions, single row, 3.96 mm pitch, tin-plated mating contacts, through-hole, solder termination, bulk package.
| Parameter | Value |
|---|---|
| Series | KK396, 41681 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.360\" (9.14mm) |
| Insulation material | Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.156\" (3.96mm) |
| Positions | 10 |
| Contact finish - post | Tin |
| Contact length - post | 0.172\" (4.37mm) |
| Overall contact length | 0.750\" (19.05mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.450\" (11.43mm) |
| Contact finish thickness - post | 60.0µin (1.52µm) |
| Contact finish thickness - mating | 60.0µin (1.52µm) |
The 0026481103 is the 10-position member of Molex's KK396 header line, a single-row breakaway with 3.96 mm pitch. Tin-plated mating contacts, through-hole mounting, push-pull fastening, and a shrouded 1-wall insulator rated UL94 V-0.
Marked Obsolete by Molex. Availability is confirmed per RFQ, sourced through independent channels.
