Molex 0026482022 — Pin Headers

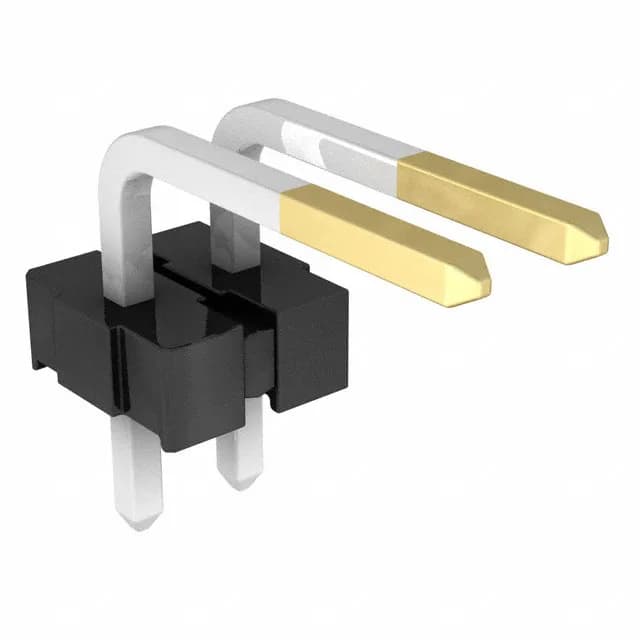

Molex 0026482022 KK396 Header, 2-Pin, 3.96mm Pitch

MPN0026482022
Active

Molex KK396 series, 41662 header, unshrouded breakaway, 2 circuits, 3.96mm pitch, right-angle through-hole, gold mating finish, ROHS3 compliant, active production.

$0.8600Ref. price · indicative, final on quote
Molex 0026482022 datasheet (PDF)
RoHSROHS3 Compliant
SeriesKK396, 41662
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

0026482022 key specifications
ParameterValue
SeriesKK396, 41662
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader, Breakaway
Fastening typePush-Pull
Contact materialBrass
Insulation colorBlack
Insulation height0.128\" (3.25mm)
Insulation materialPolyester, Glass Filled
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable
PackageBulk

All specifications

0026482022 additional specifications
ParameterValue
ShroudingUnshrouded
TerminationSolder
ApplicationsAutomotive, General Purpose, Industrial, Medical, Telecommunications
Contact shapeSquare
Rows1
Pitch0.156\" (3.96mm)
Positions2
Contact finish - postTin
Contact length - post0.184\" (4.67mm)
Contact finish - matingGold
Contact length - mating0.573\" (14.55mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating20.0µin (0.51µm)

Product details

Right-Angle 2-Pin Header at 3.96mm Pitch

The 0026482022: This is a Molex KK396 series unshrouded header, 2 positions loaded, on 0.156" (3.96mm) pitch. The mating interface is gold-plated at 20.0µinch (0.51µm) over brass pins, with tin-plated posts for solderability. Rated for board-to-board or cable connections, this breakaway header mates with standard KK396 crimp receptacles and housings.

The 0.156" pitch sets a per-contact pad spacing that accommodates 3.96mm center-to-center traces on a standard PCB. With only two positions, the footprint is compact — the mating pin length of 0.573" (14.55mm) and post length of 0.184" (4.67mm) define the through-hole depth and the standoff from the board. The insulation height is 0.128" (3.25mm) above the board surface after soldering.

Frequently asked questions

Where can I buy Molex 0026482022 and is it available via RFQ confirmation?

Sourced through independent distribution channels. Submit an RFQ for current pricing and delivery.

What is the closest pin-compatible alternative to 0026482022 in the KK396 series?

A direct sibling is the 0026482021, also a 2-position unshrouded header at 3.96mm pitch. The difference is contact plating: 0026482021 uses tin on the mating surface, while 0026482022 uses gold. If your application does not require the corrosion resistance or higher mating cycle life of gold, the tin version is a cost-reduction path.
