Molex 0026482035 — Pin Headers

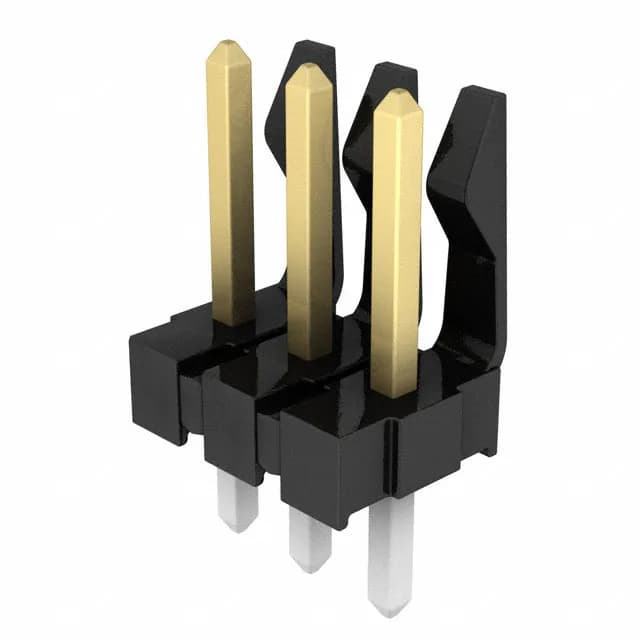

Molex 0026482035 Header – 3 Pos, 3.96mm Pitch, Gold

MPN0026482035
Active

Molex KK396 / 41671 series, Board to Board or Cable, 3-position single-row male header, 0.156" (3.96mm) pitch, through-hole solder termination, gold-plated mating contacts, friction lock, UL94 V-0 black polyester housing.

$1.7500Ref. price · indicative, final on quote
Molex 0026482035 datasheet (PDF)
RoHSROHS3 Compliant
SeriesKK396, 41671
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

0026482035 key specifications
ParameterValue
SeriesKK396, 41671
TypeMale Pin
MountingThrough Hole
Connector typeHeader, Breakaway
Fastening typeFriction Lock
Contact materialBrass
Insulation colorBlack
Insulation height0.500\" (12.70mm)
Insulation materialPolyester
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable
PackageBulk

All specifications

0026482035 additional specifications
ParameterValue
ShroudingShrouded - 1 Wall
TerminationSolder
ApplicationsAutomotive, General Purpose, Industrial, Medical, Telecommunications
Contact shapeSquare
Rows1
Pitch0.156\" (3.96mm)
Positions3
Contact finish - postTin
Contact length - post0.172\" (4.37mm)
Overall contact length0.750\" (19.05mm)
Contact finish - matingGold
Contact length - mating0.450\" (11.43mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating20.0µin (0.51µm)

Product details

3-Position Single-Row Header for Wire-to-Board and Board-to-Board

The 0026482035: The friction lock holds the header to the matching receptacle under moderate vibration — useful in automotive, industrial, or telecom enclosures where the cable is routed near moving equipment.

ROHS3 compliant. No official successor or pin-compatible alternate from Molex is listed — the 41671-03 is the same part under a different order-code format.

The square male pin (0.045" square typical for KK396) mates with standard KK396 crimp receptacles or board-in receptacles.

Frequently asked questions

Is Molex 0026482035 the same as 41671-03?

Yes — 0026482035 and 41671-03 refer to the same Molex KK396 header. The 002648 base number covers the series; the full order code 0026482035 is the standard ordering format. Sourced per RFQ.

Can Molex 0026482035 be used in automotive applications?

Yes — the listed applications include Automotive, General Purpose, Industrial, Medical, and Telecommunications. The friction lock and UL94 V-0 housing suit it for moderate-vibration environments inside a sealed enclosure. Confirm the full environmental range against your specific under-hood or cabin location.
