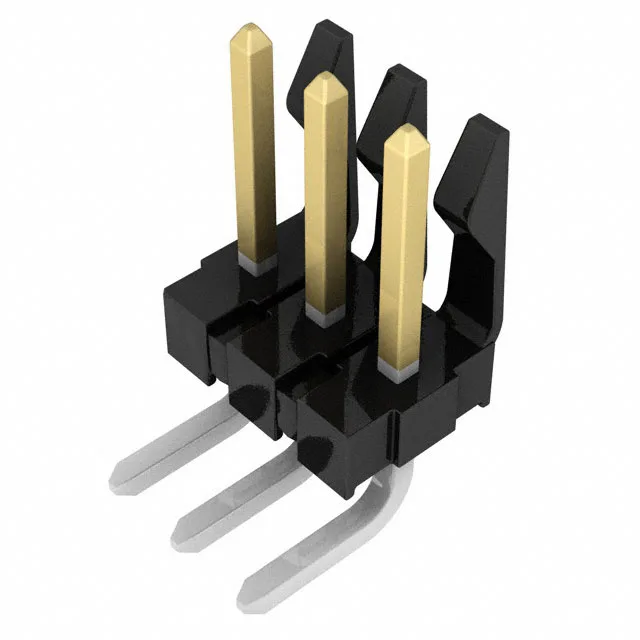

Molex KK396 header, order code 0026482036, 3 positions, single row, 0.156" (3.96 mm) pitch, gold-plated mating contacts, through-hole right-angle, solder termination, friction lock, shrouded 1-wall housing.
| Parameter | Value |
|---|---|
| Series | KK396, 41672 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header, Breakaway |
| Fastening type | Friction Lock |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.355\" (9.02mm) |
| Insulation material | Polyester |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.156\" (3.96mm) |
| Positions | 3 |
| Contact finish - post | Tin |
| Contact length - post | 0.212\" (5.38mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.450\" (11.43mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 20.0µin (0.51µm) |
The 0026482036 is the 3-position member of the Molex KK396 header series, single row, right-angle through-hole with a shrouded 1-wall housing and friction lock. Housing is black polyester rated UL94 V-0.
The 3-circuit count is the smallest in the KK396 series; 4-, 5-, 6-, 8-, 10-, 12-, 14-, 16-, 18-, and 20-circuit versions share the same pitch and footprint.
