Board Footprint and Contact Interface

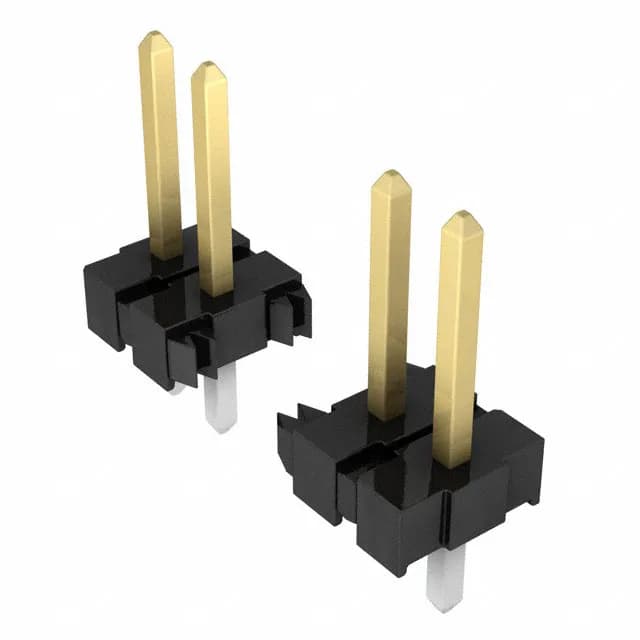

The 0026482050: 5-position unshrouded header on 3.96 mm pitch — the spacing sets the board routing density and the per-contact current ceiling. The square male pins are gold-plated 20 µinch on the mating face, tin-plated 100 µinch on the solder post. Breakaway construction means the 5-position strip can be snapped from a longer carrier; the unshrouded design mates with KK396 crimp receptacle housings without polarization keying.
Mates with Molex KK396 crimp receptacle housings (series 41661) using 20-24 AWG terminals.
