Molex 0026482062

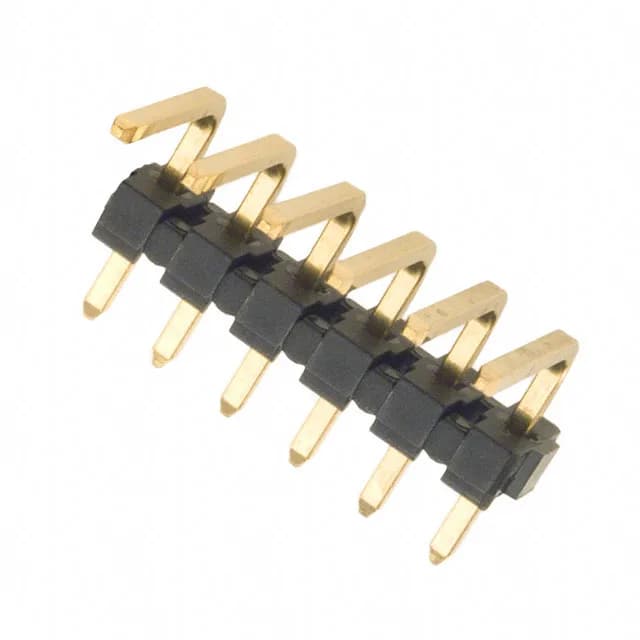

Molex 0026482062 KK396 Header R/A 6POS 3.96mm Gold

MPN 0026482062
Active

Molex KK396, 41662 series unshrouded breakaway header, 6 circuits, 3.96mm pitch, right-angle through-hole, gold-plated mating pins, UL94 V-0 housing.

$2.4100 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesKK396, 41662
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

0026482062 key specifications
ParameterValue
SeriesKK396, 41662
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader, Breakaway
Fastening typePush-Pull
Contact materialBrass
Insulation colorBlack
Insulation height0.128\" (3.25mm)
Insulation materialPolyester, Glass Filled
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable
PackageBulk

All specifications

0026482062 additional specifications
ParameterValue
ShroudingUnshrouded
TerminationSolder
ApplicationsAutomotive, General Purpose, Industrial, Medical, Telecommunications
Contact shapeSquare
Rows1
Pitch0.156\" (3.96mm)
Positions6
Contact finish - postTin
Contact length - post0.184\" (4.67mm)
Contact finish - matingGold
Contact length - mating0.573\" (14.55mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating20.0µin (0.51µm)

Product details

The 0026482062: This is a 6-position, single-row unshrouded header on 3.96mm pitch — the board footprint needs a row of six 1.0mm–1.2mm plated through-holes spaced at 3.96mm centres.

Contact Interface and Mating Cycles

In a harness that mates quarterly, the contact interface will outlast the equipment service life without fretting corrosion. The post finish is 100µin tin, standard for solder-tail wetting. The square male pin (0.045" square typical for KK396) mates with the standard KK396 crimp socket terminal. For vibration-prone environments, consider adding a wire-retention feature or strain relief at the cable end.

Application Range and Environment

The glass-filled polyester housing (UL94 V-0) withstands typical industrial ambient temperatures.

MPN
0026482062
