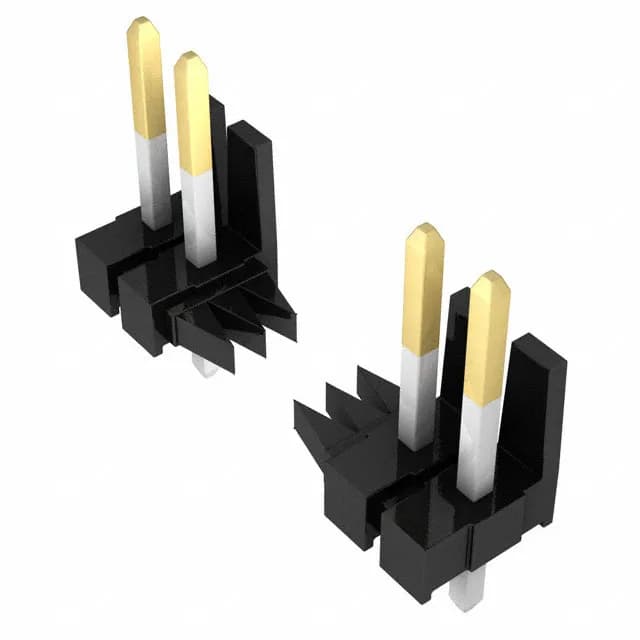

Molex KK396, 41681 series, 0026482063 — 6-position, single-row, through-hole header, 3.96 mm pitch, gold-plated mating contacts, UL94 V-0 black housing, bulk packaged.
| Parameter | Value |
|---|---|
| Series | KK396, 41681 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.360\" (9.14mm) |
| Insulation material | Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.156\" (3.96mm) |
| Positions | 6 |
| Contact finish - post | Tin |
| Contact length - post | 0.172\" (4.37mm) |
| Overall contact length | 0.750\" (19.05mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.450\" (11.43mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 20.0µin (0.51µm) |
The 0026482063: The housing is shrouded on one wall, which guides the receptacle during mating and reduces the risk of contact damage.
Molex lists this header for use in automotive, general purpose, industrial, medical, and telecommunications applications. The through-hole termination provides a solder joint that handles moderate mechanical strain from the cable assembly.
The mating half is a KK396 crimp receptacle housing (series 41681) that accepts the matching crimp terminals. The header uses a push-pull fastening type, so the receptacle latches without a locking ramp.
