Molex 0026482072 — Pin Headers

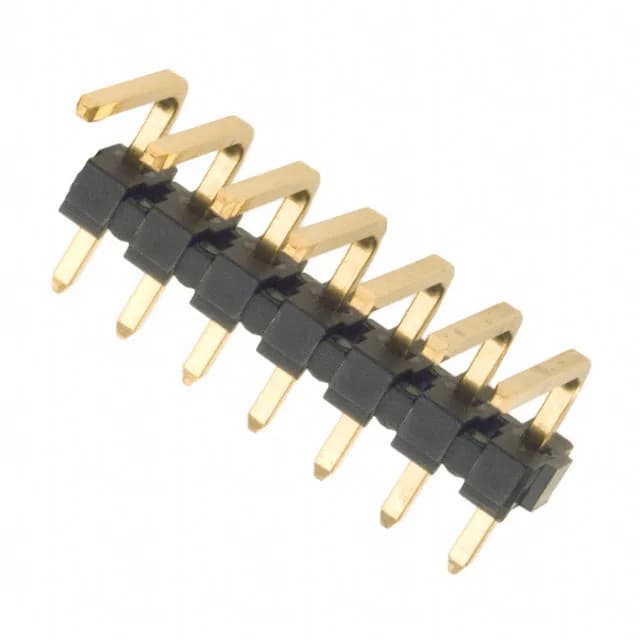

Molex 0026482072 KK396 Header, 7 Pos, 3.96mm, Right Angle

MPN0026482072
Active

Molex KK396 / 41662 series, 7-position single-row unshrouded header, 3.96mm pitch, right-angle through-hole, gold-plated mating pins, tin-plated posts, UL94 V-0 black polyester housing.

$2.6000Ref. price · indicative, final on quote
Molex 0026482072 datasheet (PDF)
RoHSROHS3 Compliant
SeriesKK396, 41662
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

0026482072 key specifications
ParameterValue
SeriesKK396, 41662
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader, Breakaway
Fastening typePush-Pull
Contact materialBrass
Insulation colorBlack
Insulation height0.128\" (3.25mm)
Insulation materialPolyester, Glass Filled
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable
PackageBulk

All specifications

0026482072 additional specifications
ParameterValue
ShroudingUnshrouded
TerminationSolder
ApplicationsAutomotive, General Purpose, Industrial, Medical, Telecommunications
Contact shapeSquare
Rows1
Pitch0.156\" (3.96mm)
Positions7
Contact finish - postTin
Contact length - post0.184\" (4.67mm)
Contact finish - matingGold
Contact length - mating0.573\" (14.55mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating20.0µin (0.51µm)

Product details

The Molex 0026482072 is a 7-position, single-row unshrouded header from the KK396 / 41662 series. It uses a 3.96mm pitch and a right-angle through-hole termination, making it suited for board-edge routing where the connector sits parallel to the PCB. The housing is glass-filled polyester rated UL94 V-0, and the connector is ROHS3 compliant.

In vibration environments, a housing with a positive lock or a secondary TPA is recommended.

The base product number is 002648, and the part is packaged in bulk.

Frequently asked questions

What is the exact pinout of Molex 0026482072?

The 0026482072 is a 7-position single-row header. All 7 positions are loaded. The pinout is a straight 1x7 array on 3.96mm pitch, with no keying or polarization on the header itself — the mating receptacle provides the alignment.
