The 0026482092: The 3.96mm pitch leaves 0.156" between adjacent pin centers — enough to route a single trace between pads on a standard 1 oz copper board without necking down. The right-angle orientation requires a keep-out zone on the PCB for the body overhang; the insulation height of 0.128" (3.25mm) sets the clearance from the board surface to the bottom of the header body. The post length of 0.184" (4.67mm) is sufficient for a 1.6mm-thick PCB with a solder fillet on the bottom side.

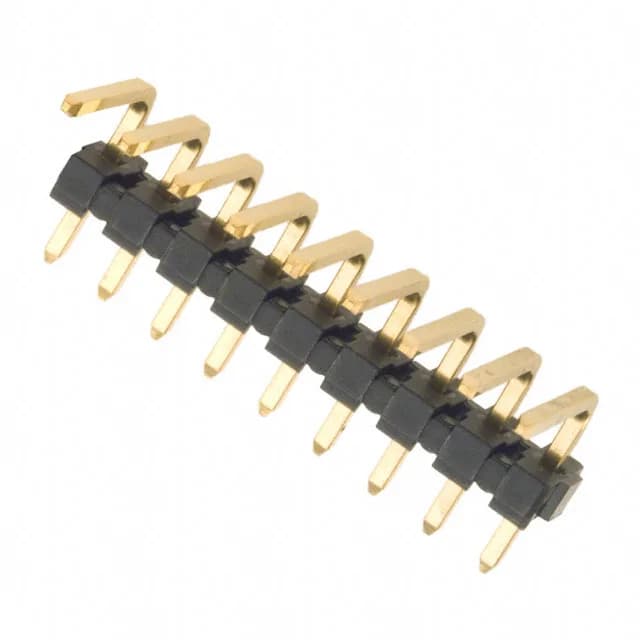

Molex 0026482092 KK396 Header, 9 Pos, 3.96mm, Right Angle
MPN0026482092
Active
Molex KK396/41662 series, 0026482092, unshrouded breakaway header, 9 circuits, 3.96mm pitch, right-angle through-hole, gold-plated mating contacts, UL94 V-0 housing.
$3.3400Ref. price · indicative, final on quote
SeriesKK396, 41662
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | KK396, 41662 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.128\" (3.25mm) |
| Insulation material | Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
All specifications
| Parameter | Value |
|---|---|
| Shrouding | Unshrouded |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.156\" (3.96mm) |
| Positions | 9 |
| Contact finish - post | Tin |
| Contact length - post | 0.184\" (4.67mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.573\" (14.55mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 20.0µin (0.51µm) |
Product details
Frequently asked questions
What housing mates with Molex 0026482092?
This unshrouded header mates with Molex KK396 series crimp receptacle housings (e.g., 41662 series) that accept 3.96mm pitch female terminals.
What is the closest pin-compatible alternative in the same series?
Within the KK396/41662 series, the 0026482092 is a 9-position variant. Confirm the BOM position count before substituting.
