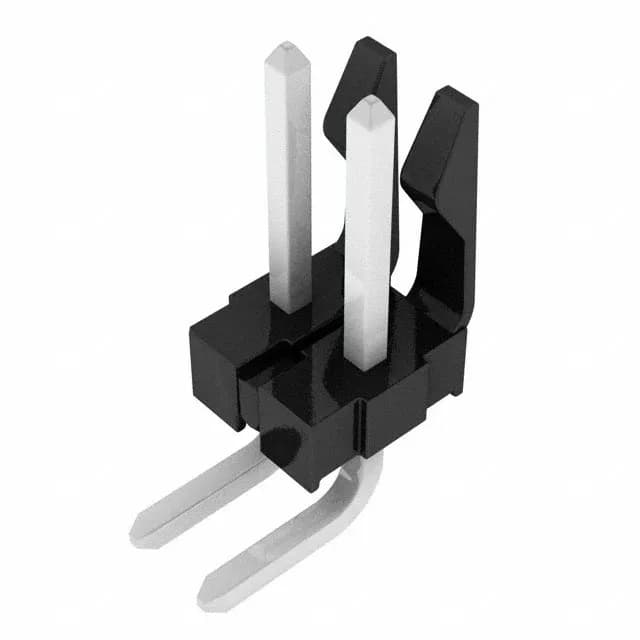

Molex 0026486024 KK396 Header, 2 Pos, 3.96mm, R/A, Tin

MPN0026486024
Active

Molex KK396, 41672 series, 0026486024 — 2-position single-row male pin header, 0.156" (3.96mm) pitch, right-angle through-hole, tin-plated, shrouded 1-wall with friction lock, UL94 V-0, ROHS3 compliant.

$0.4300Ref. price · indicative, final on quote
Molex 0026486024 datasheet (PDF)
RoHSROHS3 Compliant
SeriesKK396, 41672
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

0026486024 key specifications
ParameterValue
SeriesKK396, 41672
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader, Breakaway
Fastening typeFriction Lock
Contact materialBrass
Insulation colorBlack
Insulation height0.355\" (9.02mm)
Insulation materialPolyester
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable
PackageBulk

All specifications

0026486024 additional specifications
ParameterValue
ShroudingShrouded - 1 Wall
TerminationSolder
ApplicationsAutomotive, General Purpose, Industrial, Medical, Telecommunications
Contact shapeSquare
Rows1
Pitch0.156\" (3.96mm)
Positions2
Contact finish - postTin
Contact length - post0.207\" (5.26mm)
Contact finish - matingTin
Contact length - mating0.528\" (13.41mm)
Contact finish thickness - post60.0µin (1.52µm)
Contact finish thickness - mating60.0µin (1.52µm)

Product details

3.96mm Pitch, Breakaway Header with Friction Lock

The 0026486024 is a 2-position, single-row male pin header from Molex's KK396 series (also cataloged under 41672).

It is ROHS3 compliant and the polyester housing meets UL94 V-0 flammability rating.

Mates with standard KK396 crimp receptacle housings (e.g., Molex 41671 series) using 3.96mm pitch terminals. Termination is solder to through-hole PCB — the 0.207" (5.26mm) post length suits standard 1.6mm thick boards. Contact material is brass; the square pin shape provides reliable solder joint formation.
