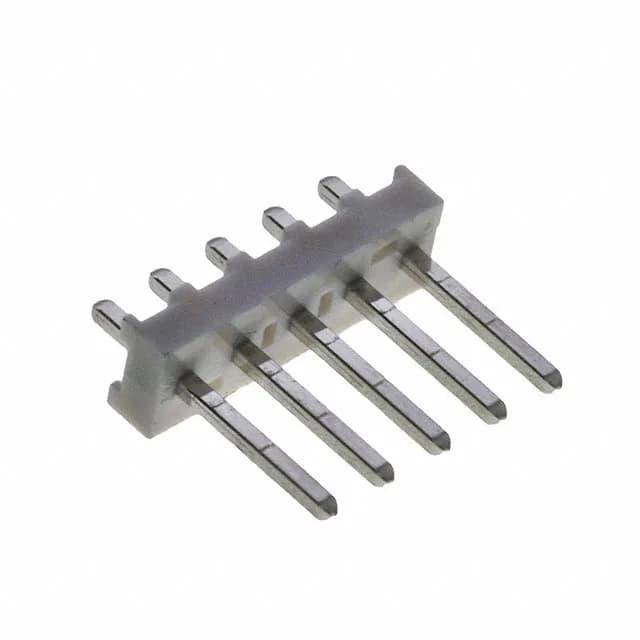

Molex KK396 header, order code 0026602050, 5 positions, single row, 0.156" (3.96mm) pitch, tin-plated mating contacts, through-hole, solder termination.
Molex 0026602050 KK396 Header, 5-Pos 3.96mm
MPN0026602050
Active
Molex KK396 header, order code 0026602050, 5 positions, single row, 0.156" (3.96mm) pitch, tin-plated mating contacts, through-hole, solder termination.
$0.7800Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | KK396, 41771 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Insulation color | Natural |
| Insulation height | 0.130\" (3.30mm) |
| Insulation material | Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Unshrouded |
All specifications
| Parameter | Value |
|---|---|
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.156\" (3.96mm) |
| Positions | 5 |
| Contact finish - post | Tin |
| Contact length - post | 0.140\" (3.56mm) |
| Overall contact length | 0.720\" (18.29mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.450\" (11.43mm) |
| Contact finish thickness - post | 60.0µin (1.52µm) |
| Contact finish thickness - mating | 60.0µin (1.52µm) |
Product details
Frequently asked questions
What is 0026602050's listed style?
Board to Board or Cable, per the spec record.
What compliance documentation does Molex provide for 0026602050?
The insulation material is rated UL94 V-0. RoHS and REACH compliance documentation is available from Molex; no further certification details are on record here.
