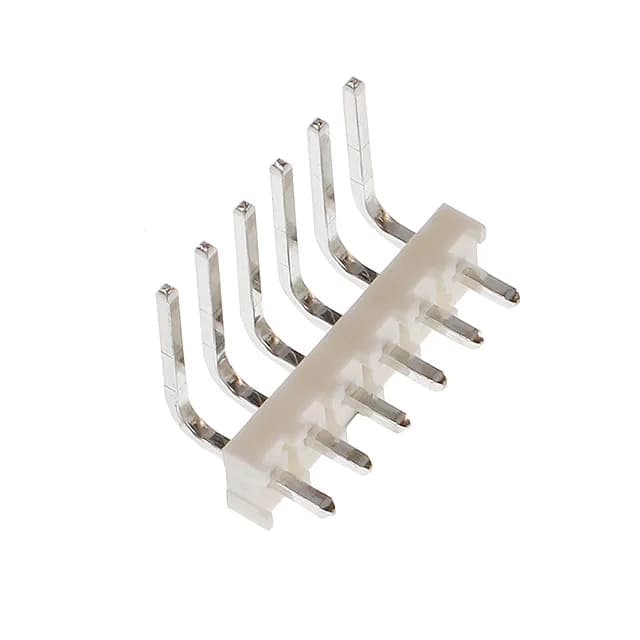

Right-Angle 3.96 mm Header for Board-Edge Wiring
The 0026603060: The square male pins measure 0.585" (14.86 mm) long on the mating side and 0.140" (3.56 mm) on the post side.
ROHS3 compliant. The polyester glass-filled housing meets UL94 V-0 flame rating.
The unshrouded header mates with KK396 crimp receptacle housings (series 41772) for wire-to-board connections, or with another header for board-to-board stacking. Applications span automotive, general purpose, industrial, medical, and telecommunications — the tin plating and V-0 housing suit equipment inside an enclosure where moderate vibration and occasional disconnection are expected.
