Molex 0026603150 — Pin Headers

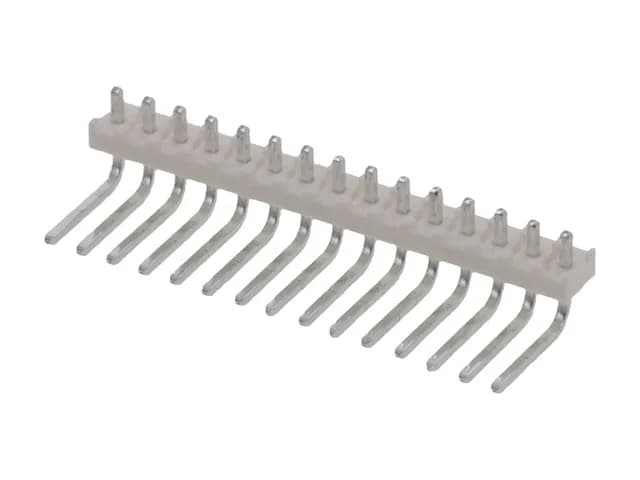

Molex 0026603150 KK396 Header, 15 Pos, 3.96mm, Right-Angle

MPN0026603150
Active

Molex KK396 41772 series unshrouded header, 15 circuits, 3.96mm pitch, right-angle through-hole, tin-plated square pins, UL94 V-0 polyester housing, natural color.

$2.8300Ref. price · indicative, final on quote
Molex 0026603150 datasheet (PDF)
RoHSROHS3 Compliant
SeriesKK396, 41772
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

0026603150 key specifications
ParameterValue
SeriesKK396, 41772
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typePush-Pull
Insulation colorNatural
Insulation height0.130\" (3.30mm)
Insulation materialPolyester, Glass Filled
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable
PackageBulk
ShroudingUnshrouded

All specifications

0026603150 additional specifications
ParameterValue
TerminationSolder
ApplicationsAutomotive, General Purpose, Industrial, Medical, Telecommunications
Contact shapeSquare
Rows1
Pitch0.156\" (3.96mm)
Positions15
Contact finish - postTin
Contact length - post0.140\" (3.56mm)
Contact finish - matingTin
Contact length - mating0.585\" (14.86mm)
Contact finish thickness - post60.0µin (1.52µm)
Contact finish thickness - mating60.0µin (1.52µm)

Product details

The 0026603150: The 3.96mm (0.156") pitch is a legacy Molex KK396 standard — the footprint is documented and compatible with existing KK396 crimp housings. 15 circuits in a single row; all positions loaded, so the BOM line is a straight count match.

Contact and Plating for the Duty Cycle

Square male pins, solder termination; the post length of 0.140" (3.56mm) fits standard PCB thicknesses.

Housing and Environmental Ratings

UL94 V-0 polyester glass-filled housing — flame-rated for equipment inside an enclosure, with dimensional stability through wave solder. Unshrouded push-pull fastening; mates with KK396 crimp receptacle housings (sold separately).

ROHS3 compliant. Bulk packaging.

Frequently asked questions

What connectors mate with 0026603150?

This unshrouded header mates with KK396 crimp receptacle housings (sold separately). The 3.96mm pitch and single-row layout are standard for the series.

How do I get pricing and availability for 0026603150?

Submit an RFQ with your target quantity for a current sourcing response.
