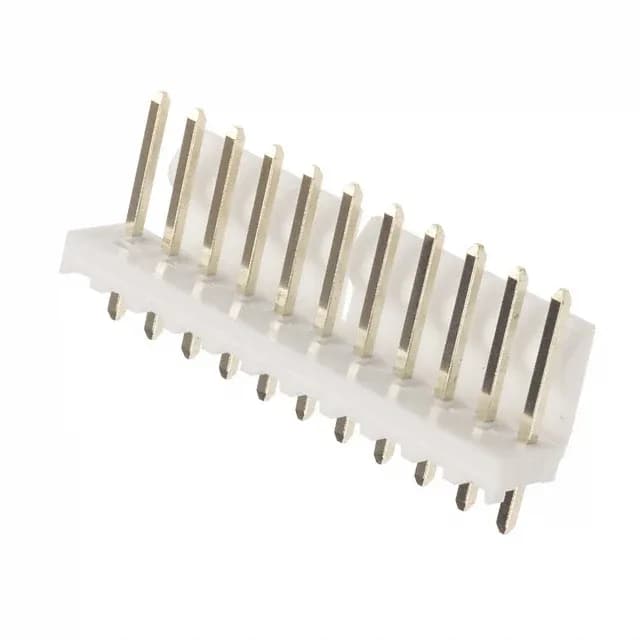

Molex 0026604110 KK396 Header, 11 Pos, 3.96mm Pitch

MPN0026604110
Active

Molex KK396 41791 series header, 0026604110, 11 positions, 3.96mm pitch, single-row, shrouded 1 wall, through-hole, tin-plated square pins, friction lock, UL94 V-0, active production.

$1.5300Ref. price · indicative, final on quote
Molex 0026604110 datasheet (PDF)
RoHSROHS3 Compliant
SeriesKK396, 41791
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

0026604110 key specifications
ParameterValue
SeriesKK396, 41791
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeFriction Lock
Insulation colorNatural
Insulation height0.446\" (11.33mm)
Insulation materialPolyester, Glass Filled
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable
PackageBulk
ShroudingShrouded - 1 Wall

All specifications

0026604110 additional specifications
ParameterValue
TerminationSolder
ApplicationsAutomotive, General Purpose, Industrial, Medical, Telecommunications
Contact shapeSquare
Rows1
Pitch0.156\" (3.96mm)
Positions11
Contact finish - postTin
Contact length - post0.140\" (3.56mm)
Overall contact length0.720\" (18.29mm)
Contact finish - matingTin
Contact length - mating0.450\" (11.43mm)
Contact finish thickness - post60.0µin (1.52µm)
Contact finish thickness - mating60.0µin (1.52µm)

Product details

3.96mm Pitch, 11 Positions, Friction Lock

The 0026604110: The 0.156-inch (3.96mm) pitch is the defining board footprint dimension for this KK396 header — it sets the per-contact current ceiling and the routing density on the PCB.

Tin Plating and Current Handling

Tin is cost-effective for automotive and industrial harnesses where the connector is mated fewer than 25 times over its life. The square male pins provide a reliable contact interface.

ROHS3 compliant and rated UL94 V-0 for the polyester glass-filled housing.

Mates with KK396 crimp receptacle housings (series 41791) using the matching crimp terminals. The through-hole mounting provides a robust solder joint for environments where the connector sees cable strain.
