Through-hole solder termination with friction lock

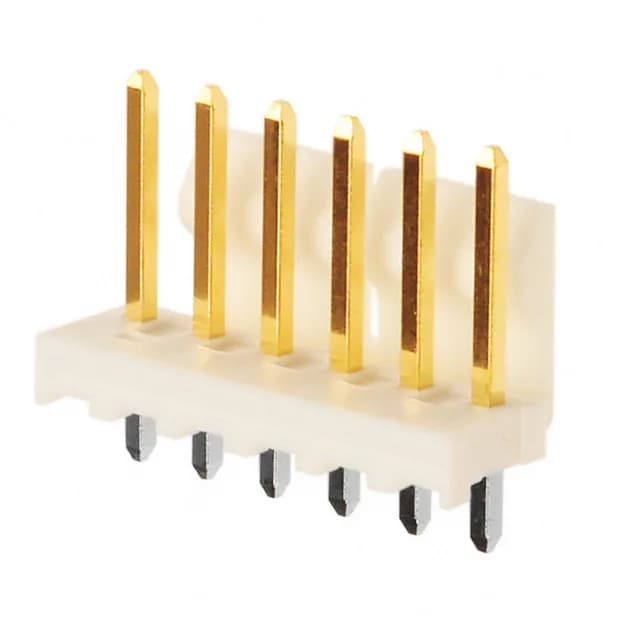

The 0026614060 is a 6-position single-row member of the Molex KK396 and 41791 header series, terminated through-hole with solder. It mates at a 3.96 mm pitch, carries gold-plated mating contacts rated 20.0 µin (0.51 µm) thick, and locks with a friction latch to resist vibration-induced separation.
Pitch, plating, and lock drive the selection
The 3.96 mm pitch sets the board footprint for a single-row layout; the gold mating surface supports repeated connect-disconnect cycles in automotive and industrial environments. A friction lock on the shrouded 1-wall housing holds the mating connector in place without a secondary latch, and the UL94 V-0 polyester glass-filled insulation handles enclosure flame-rating requirements.
