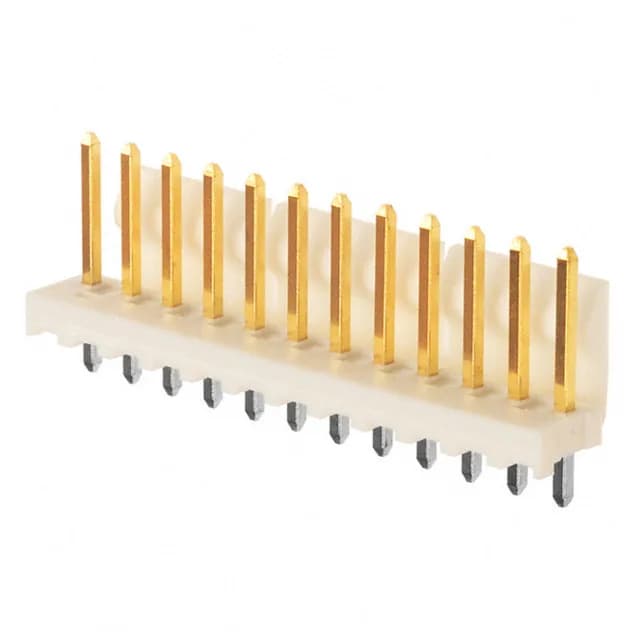

Molex KK396, 41791 series header, 12 positions, 0.156" (3.96mm) pitch, through-hole, shrouded 1-wall, gold mating contacts, friction lock, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | KK396, 41791 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Friction Lock |
| Insulation color | Natural |
| Insulation height | 0.446\" (11.33mm) |
| Insulation material | Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Shrouded - 1 Wall |
| Parameter | Value |
|---|---|
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.156\" (3.96mm) |
| Positions | 12 |
| Contact finish - post | Tin |
| Contact length - post | 0.140\" (3.56mm) |
| Overall contact length | 0.720\" (18.29mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.450\" (11.43mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 20.0µin (0.51µm) |
The 0026614120: At this pitch, the through-hole solder tails give a solid mechanical anchor for cable-to-board or board-to-board connections in environments where vibration is a concern.
This 12-position single-row header sits in the KK396 series alongside 2- to 24-position variants at the same 3.96mm pitch.
This header mates with KK396 crimp receptacle housings that accept 18-24 AWG wire.
This header mates with KK396 crimp receptacle housings (Molex series 41791).
