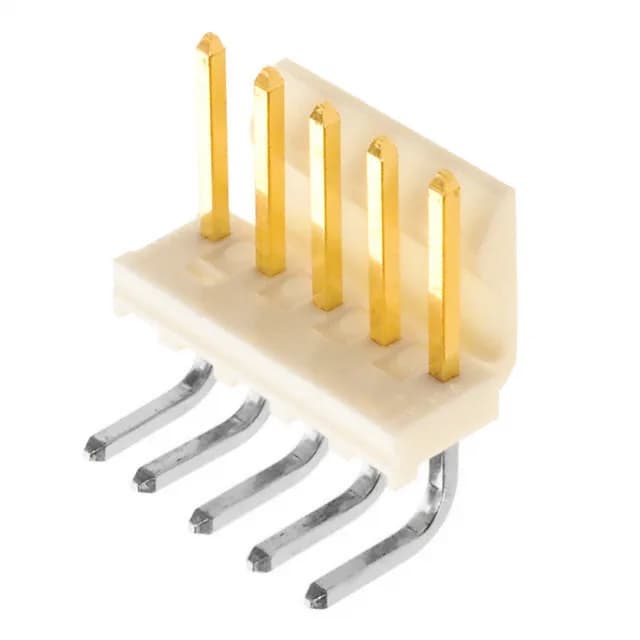

Molex KK396, 41792 header, order code 0026615050, 5 positions, single row, 0.156" (3.96 mm) pitch, gold-plated mating contacts, through-hole right-angle, solder termination.
| Parameter | Value |
|---|---|
| Series | KK396, 41792 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Friction Lock |
| Insulation color | Natural |
| Insulation height | 0.394\" (10.00mm) |
| Insulation material | Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Shrouded - 1 Wall |
| Parameter | Value |
|---|---|
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.156\" (3.96mm) |
| Positions | 5 |
| Contact finish - post | Tin |
| Contact length - post | 0.156\" (3.96mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.450\" (11.43mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 20.0µin (0.51µm) |
The 0026615050 is the 5-circuit member of Molex's KK396 header line, a single-row shrouded header with a friction lock for positive retention in automotive, industrial, medical, and telecommunications equipment. Gold-plated mating contacts (20.0 µin) resist corrosion through repeated mating cycles; the through-hole right-angle solder termination secures the header to the board with a 0.156" post length.
