Molex 0026615070

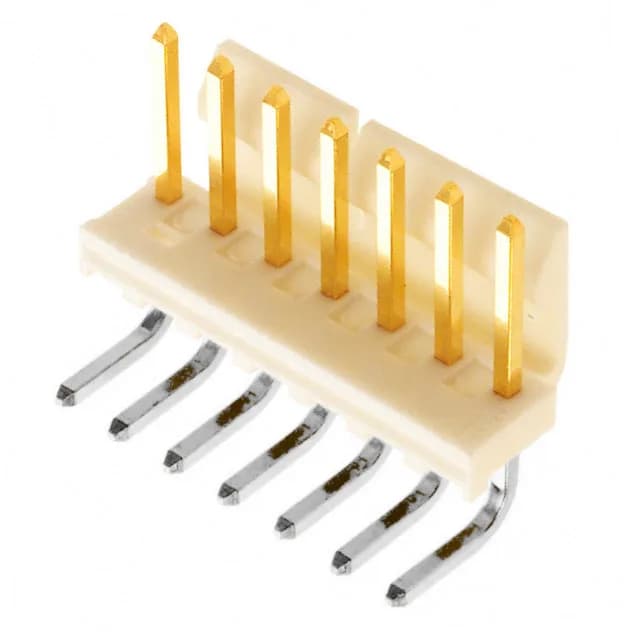

Molex 0026615070 KK396 Header – 7 Pos, 3.96mm Pitch

MPN 0026615070
Active

Molex KK396 41792 series header, 7 positions, 3.96mm pitch, right-angle through-hole, gold-plated male pins, friction lock, UL94 V-0 polyester housing, natural insulation color.

$6.0100 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesKK396, 41792
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

0026615070 key specifications
ParameterValue
SeriesKK396, 41792
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typeFriction Lock
Insulation colorNatural
Insulation height0.394\" (10.00mm)
Insulation materialPolyester, Glass Filled
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable
PackageBulk
ShroudingShrouded - 1 Wall

All specifications

0026615070 additional specifications
ParameterValue
TerminationSolder
ApplicationsAutomotive, General Purpose, Industrial, Medical, Telecommunications
Contact shapeSquare
Rows1
Pitch0.156\" (3.96mm)
Positions7
Contact finish - postTin
Contact length - post0.156\" (3.96mm)
Contact finish - matingGold
Contact length - mating0.450\" (11.43mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating20.0µin (0.51µm)

Product details

Board footprint and circuit count

The 0026615070: This header carries 7 positions on a single row at 3.96mm pitch — the board footprint is a straight line of plated through-holes spaced 3.96mm apart.

Mating contact plating and cycle life

The mating contact finish is 20 µinch gold over nickel — this is the standard gold thickness for moderate-cycle applications. In a panel that is accessed quarterly for maintenance, the contact interface will outlast the equipment without fretting corrosion. Tin-plated siblings in the same KK396 series are rated for fewer mating cycles; the gold here buys repeated disconnect/reconnect duty without the contact resistance drift that tin shows after 20-30 cycles.

Right-angle orientation and locking

In an automotive or industrial cabinet subject to 5-10 Hz vibration, this lock keeps the pair mated without a secondary latch.

MPN
0026615070
