Molex 0026615080

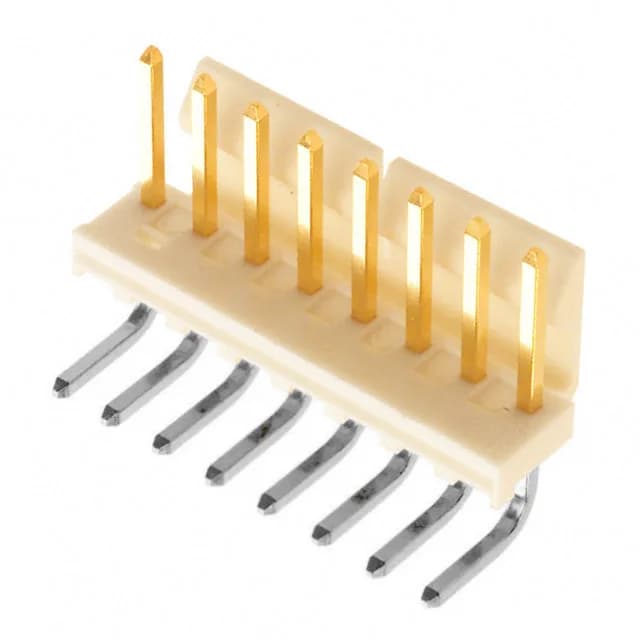

Molex 0026615080 KK396 Header, 8 Pos, 3.96mm, R/A, Gold

MPN 0026615080
Active

Molex KK396, 41792 series, 8-position single-row male header, 0.156" (3.96mm) pitch, right-angle through-hole, gold mating finish, friction lock, UL94 V-0 natural polyester housing.

$5.0500 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesKK396, 41792
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

0026615080 key specifications
ParameterValue
SeriesKK396, 41792
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typeFriction Lock
Insulation colorNatural
Insulation height0.394\" (10.00mm)
Insulation materialPolyester, Glass Filled
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable
PackageBulk
ShroudingShrouded - 1 Wall

All specifications

0026615080 additional specifications
ParameterValue
TerminationSolder
ApplicationsAutomotive, General Purpose, Industrial, Medical, Telecommunications
Contact shapeSquare
Rows1
Pitch0.156\" (3.96mm)
Positions8
Contact finish - postTin
Contact length - post0.156\" (3.96mm)
Contact finish - matingGold
Contact length - mating0.450\" (11.43mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating20.0µin (0.51µm)

Product details

0.156" Pitch, 8 Circuits, Right-Angle Routing

The 0026615080: This is a single-row male header from the Molex KK396 series, 8 positions loaded, on 0.156" (3.96mm) pitch. The single-wall shroud (Shrouded - 1 Wall) protects the pins from one side and guides the KK396 receptacle into alignment during mating. It is not a fully enclosed header — the other three sides of the pin field are exposed, so the connector relies on the friction lock for retention, not a full shell.

KK396 Series Fit and Friction Lock

The 0.450" (11.43mm) mating pin length ensures full contact wipe inside the receptacle terminal before the lock snaps. The 0.156" (3.96mm) post length leaves enough solder tail for a solid through-hole joint on a standard 1.6mm PCB. Rated for board-to-board or cable-to-board applications (Style: Board to Board or Cable). In practice, it is most often used as a wire-to-board header with the KK396 crimp terminal and receptacle housing — the friction lock is designed for that cable-entry direction.

ROHS3 compliant, UL94 V-0 rated polyester housing. The glass-filled material handles the reflow and wave-solder thermal profiles without distortion.

MPN
0026615080
