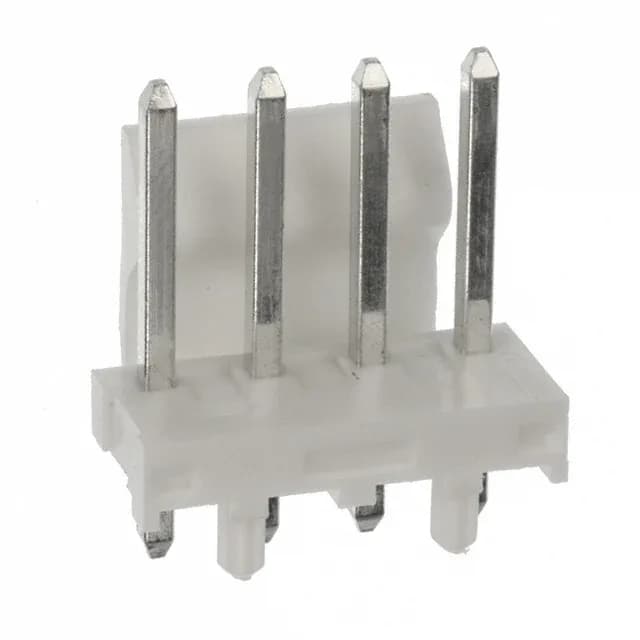

Molex 0026644040 KK396 Header, 4 Pos, 3.96mm Pitch

MPN 0026644040
Active

Molex KK396, 42491 series header, 4 positions, 3.96mm pitch, single row, shrouded 1-wall with friction lock, through-hole solder termination, tin-plated square male pins.

$0.6400 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesKK396, 42491
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

0026644040 key specifications
ParameterValue
SeriesKK396, 42491
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeFriction Lock
Contact materialBrass
Insulation colorNatural
Insulation height0.446\" (11.33mm)
Insulation materialPolyester
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable
PackageBulk

All specifications

0026644040 additional specifications
ParameterValue
FeaturesBoard Guide
ShroudingShrouded - 1 Wall
TerminationSolder
ApplicationsAutomotive, General Purpose, Industrial, Medical, Telecommunications
Contact shapeSquare
Rows1
Pitch0.156\" (3.96mm)
Positions4
Contact finish - postTin
Contact length - post0.140\" (3.56mm)
Overall contact length0.720\" (18.29mm)
Contact finish - matingTin
Contact length - mating0.450\" (11.43mm)
Contact finish thickness - post60.0µin (1.52µm)
Contact finish thickness - mating60.0µin (1.52µm)

Product details

What mates this header and how the lock works

The 0026644040: This is a 4-position, single-row header on 3.96mm pitch — the board footprint matches any KK396 female housing with the same pitch and circuit count.

Board fit and mounting details

The insulation height of 0.446" (11.33mm) keeps the header body low above the board surface.

MPN
0026644040
