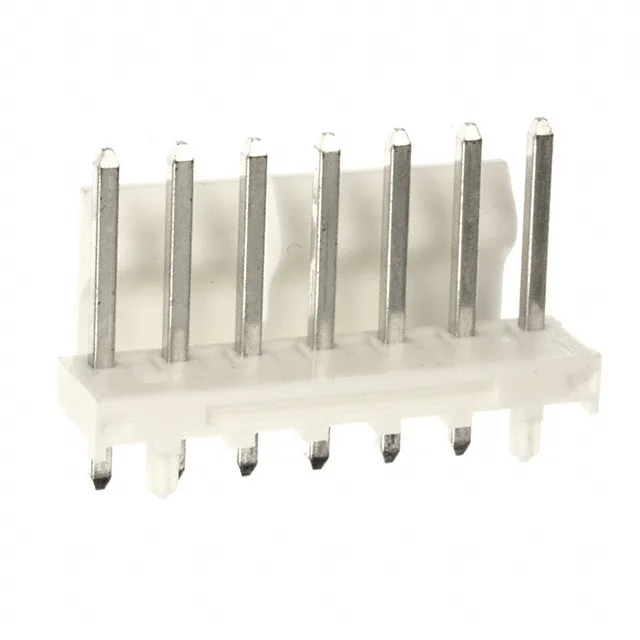

Molex 0026644070, KK396 / 42491 series, single-row shrouded header, 7 circuits, 0.156" (3.96mm) pitch, through-hole solder termination, friction lock, tin-plated contacts, UL94 V-0 polyester housing, natural insulator.
| Parameter | Value |
|---|---|
| Series | KK396, 42491 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Friction Lock |
| Contact material | Brass |
| Insulation color | Natural |
| Insulation height | 0.446\" (11.33mm) |
| Insulation material | Polyester |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Features | Board Guide |
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.156\" (3.96mm) |
| Positions | 7 |
| Contact finish - post | Tin |
| Contact length - post | 0.140\" (3.56mm) |
| Overall contact length | 0.720\" (18.29mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.450\" (11.43mm) |
| Contact finish thickness - post | 60.0µin (1.52µm) |
| Contact finish thickness - mating | 60.0µin (1.52µm) |
The 0026644070: This is a 7-position, single-row shrouded header on 0.156" (3.96mm) pitch — the same pitch as the Molex KK396 crimp receptacle family. The through-hole solder tails (0.140" post length) anchor into the board; the board guide on the header helps align the connector pair during assembly.
The mating half is a KK396 crimp housing (e.g., Molex 0022042070 for 7 circuits).
