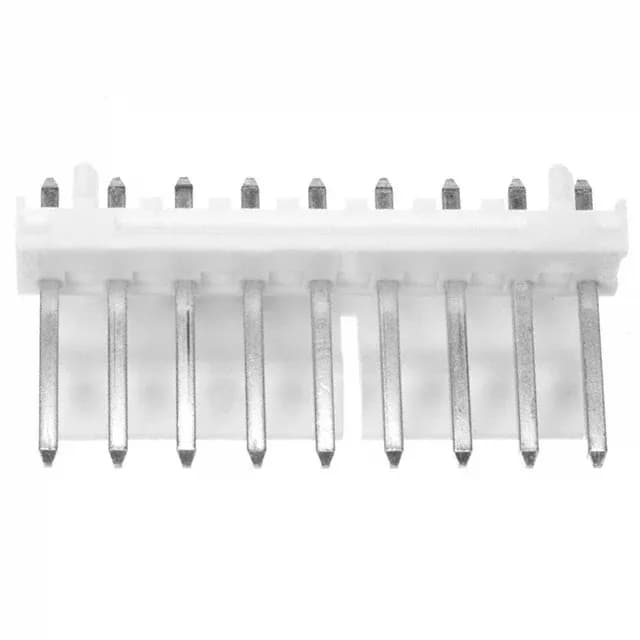

Molex KK396 series, 42491 family, vertical through-hole header, 9 positions, 0.156" (3.96 mm) pitch, single row, shrouded 1 wall, tin-plated square pins, friction lock, UL94 V-0 polyester housing, bulk package.
| Parameter | Value |
|---|---|
| Series | KK396, 42491 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Friction Lock |
| Contact material | Brass |
| Insulation color | Natural |
| Insulation height | 0.446\" (11.33mm) |
| Insulation material | Polyester |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Features | Board Guide |
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.156\" (3.96mm) |
| Positions | 9 |
| Contact finish - post | Tin |
| Contact length - post | 0.140\" (3.56mm) |
| Overall contact length | 0.720\" (18.29mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.450\" (11.43mm) |
| Contact finish thickness - post | 60.0µin (1.52µm) |
| Contact finish thickness - mating | 60.0µin (1.52µm) |
The 0026644090: All 9 positions are loaded with square tin-plated male pins. For higher mating-cycle duty, a gold-plated sibling would be the better call.
The 0.450" (11.43 mm) mating length gives good wipe on the receptacle contact. Insulation height of 0.446" (11.33 mm) sets the z-height above the PCB — check clearance against nearby components or enclosure lids.
