Plating and contact finish
The 0026644100: The 60 µ" thickness exceeds the standard 40 µ" flash, giving better wear-through resistance in field-service or repeated test connections.

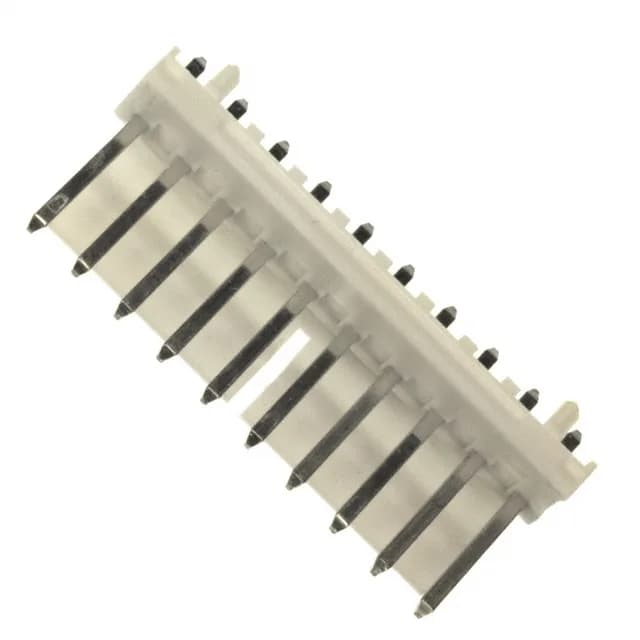

Molex 0026644100 KK396 Header 10 Pos 3.96mm Pitch
MPN0026644100
Active
Molex KK396, 42491 series, 10-position single-row through-hole header, 0.156" (3.96 mm) pitch, shrouded 1-wall, friction lock, tin-plated brass contacts, UL94 V-0 polyester housing.
$1.0800Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesKK396, 42491
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | KK396, 42491 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Friction Lock |
| Contact material | Brass |
| Insulation color | Natural |
| Insulation height | 0.446\" (11.33mm) |
| Insulation material | Polyester |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Bulk |
All specifications
| Parameter | Value |
|---|---|
| Features | Board Guide |
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.156\" (3.96mm) |
| Positions | 10 |
| Contact finish - post | Tin |
| Contact length - post | 0.140\" (3.56mm) |
| Overall contact length | 0.720\" (18.29mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.450\" (11.43mm) |
| Contact finish thickness - post | 60.0µin (1.52µm) |
| Contact finish thickness - mating | 60.0µin (1.52µm) |
Product details
Frequently asked questions
Is Molex 0026644100 shrouded?
Yes, it has a 1-wall shroud that guides the mating receptacle and protects the pins during blind-mate assembly.
What are the mating connectors for 0026644100?
This header mates with KK396 receptacle housings and crimp terminals from the same series. The friction lock on the shroud engages with the matching lock ramp on the receptacle.
