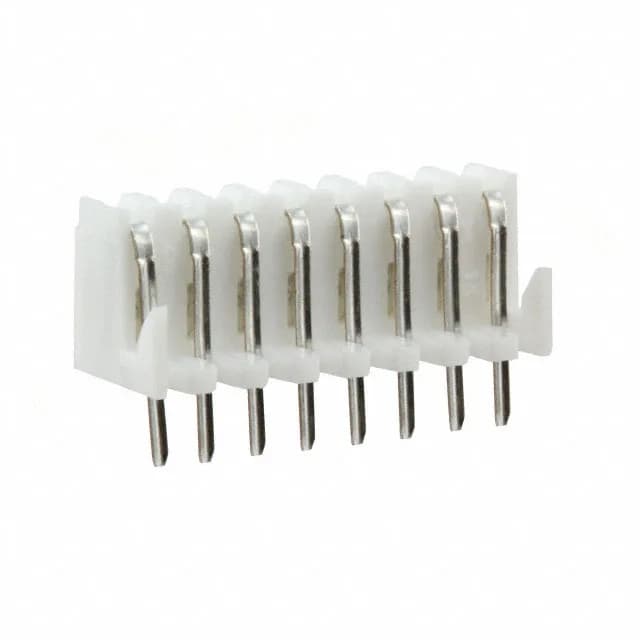

Molex 0038001398 KK254 Receptacle, 8-Position, 2.54mm Pitch, 4A
MPN0038001398
Active
Molex KK254 series, 8-position, single-row receptacle, bottom entry, push-pull mating, through-hole solder termination, 0.100in (2.54mm) pitch, tin-plated phosphor bronze contacts rated 4A per circuit, 250VAC, -40 to 105C operating, UL94 V-0 polyamide housing, board hooks.
$2.4500Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | KK254, 4455 |
| Type | Non-Gendered |
| Mounting | Through Hole |
| Connector type | Receptacle, Bottom Entry |
| Fastening type | Push-Pull |
| Voltage rating | 250VAC |
| Current rating | 4A |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | White |
| Insulation height | 0.311\" (7.90mm) |
| Insulation material | Polyamide (PA), Nylon |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Features | Board Hooks |
| Package | Tray |
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 8 |
| Contact finish - post | Tin |
| Contact length - post | 0.142\" (3.60mm) |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
Frequently asked questions
What is the listed style of 0038001398?
Style is Board to Board or Cable — confirming fit for both board-stacking and wire-to-board harness drop-in roles within that pitch and position count.
