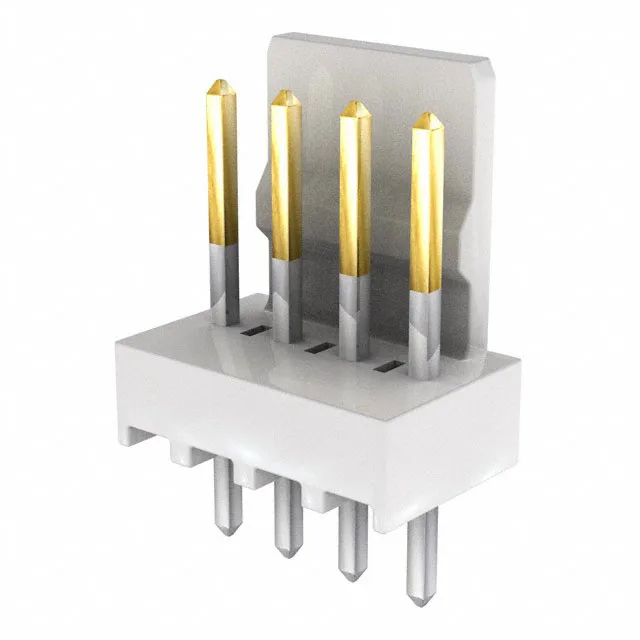

Molex KK254, 6410 header, order code 0038007666, 4 positions, single row, 0.100" (2.54mm) pitch, gold-plated mating contacts, through-hole, solder termination.
| Parameter | Value |
|---|---|
| Series | KK254, 6410 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Friction Lock |
| Contact material | Brass |
| Insulation color | Natural |
| Insulation height | 0.461\" (11.70mm) |
| Insulation material | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 4 |
| Contact finish - post | Tin |
| Contact length - post | 0.140\" (3.56mm) |
| Overall contact length | 0.650\" (16.51mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.295\" (7.49mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 20.0µin (0.51µm) |
The 0038007666 is the 4-circuit member of Molex's KK254, 6410 shrouded header line, using a single row of square male pins on 0.100" (2.54mm) pitch. Gold plating on the mating contacts and a friction-lock fastening keep the mated pair secure under vibration. The through-hole solder termination suits hand or wave assembly.
